*PRICE UPON REQUEST, PLEASE CONTACT US FOR PRICE OR QUOTATION THANK YOU*
The FLUVIA electromagnetic water velocity meter is a portable
device that measures the velocity of water to determine its flow. The
user interface for the FLUVIA has been designed to be as simple as
possible enabling users to quickly and effectively take accurate

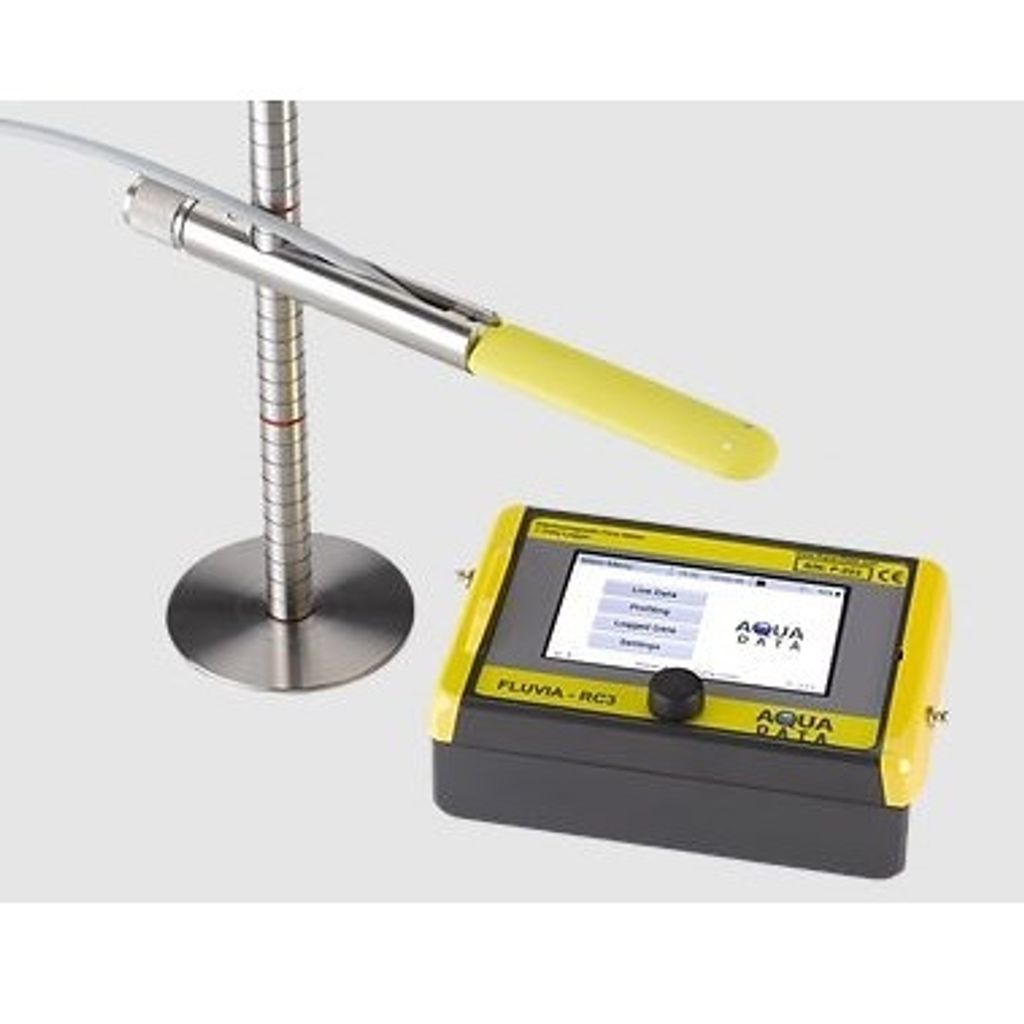

velocity measurements. Includes meter, velocity probe, 6x 316 stainless
steel rods, and carrying case.
The FLUVIA RC3 flow meter is a portable electromagnetic device that measures the velocity of water to determine its flow.
Its hydrodynamic shape and small probe size
permits measurements close to a fluid surface, channel bed or pipeline
wall, and with no moving parts, it does not retain debris - guaranteeing
accuracy and reliability.
The FLUVIA RC3 can be tailored to the users
ideal setup, meaning the units, date and time, language and data logging
methods are easily changeable. An optional extra of GPS is also
available which would auto set the time as well as provide accurate
location information for each data point.
The FLUVIA RC3 is also capable of generating a computed river flow profile, allowing more detailed analysis of a river.
Features:
- Electromagnetic sensor unaffected by temperature variations, density changes, sediment and water clarity
- IP67 Environmental Rating
- Hands-free operation
- Rechargeable, 20hrs continuous use battery life
- Multilingual English, French, German, Spanish, Dutch, Danish - other languages on request
- GPS, Bluetooth and GSM (Cellular network) support (optional, sold separately)
- Two sensor types are available
- Recording of up to 12,000 data points
Functions:
- Settings: Quick and easy to configure
the devices various functions through a menu, allowing the user to set
unit measurements time filters and recording preferences.
- Measurement and registration- Real-time velocity readings
with timestamps attached. Recording can be enabled and disabled.
Adjustable zero offset.
- Visual representation: Features graphical representation of velocity readings over an adjustable time window.
- Flow profile calculation: Flow calculation from
dimensions, water height and velocity points, calculated according to
ISO748:2007
- River profile: Assists the operator in taking up to
30 vertical sections containing up to 6 different readings which can be
exported.
- Reading data: Displays saved velocity readings with the ability to transfer them to a PC via RS-232or SDI 12.
Specifications

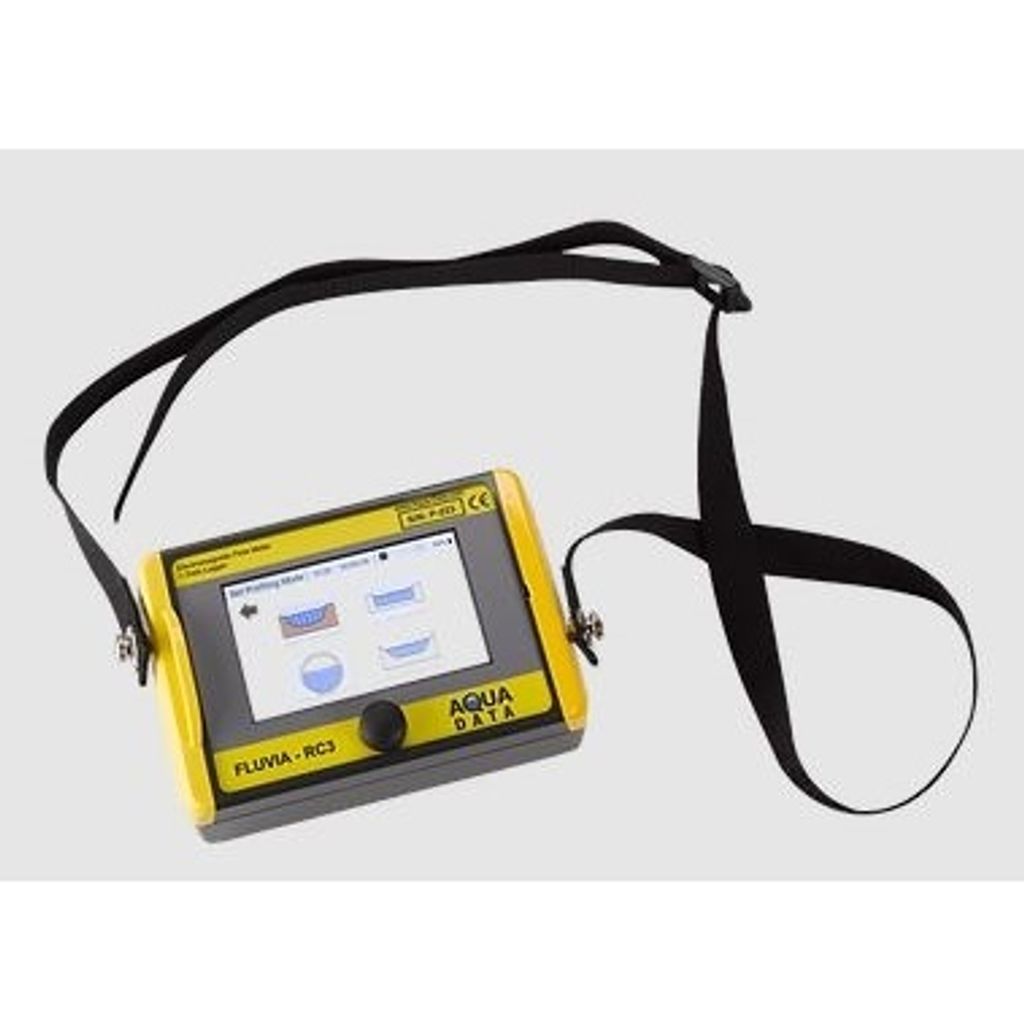

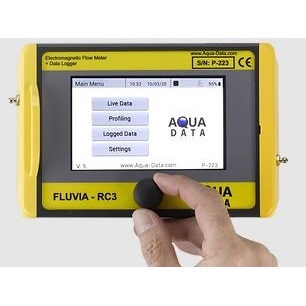

Fluvia Control Box:
- Construction: Polycarbonate case, IP67
- Display: Colour, LCD, touchscreen, 5''
- Encoder: Waterproof, 22mm dia. knob
- Range: 0 to 3m/s, 0 to 6m/s (option) flow reversal indication
- Recording: Manual or automatic, 12,000 data points32river profiles, 30 vertical sections max. Files in .csv or .xml format
- Battery power: Lithium-ion rechargeable battery
- Battery life: 20hrs continuous usage (30 hours with reduced backlight)
- PC Interface: RS-232 or SDI 12
- Dimensions: 191 x 126 x 60mm
- Weight: 1.0kg with batteries
- Temperature: -20 to +60 C
RV4 Speed Sensor:
- Method: Electromagnetic (Faraday's Law)
- Construction: Hydrodynamic shape, castin yellow epoxy resin. Stainless steel electrodes
- Cycle measures: 0.5 seconds
- Range: 0 to 3m/s, 0 to 6m/s0(option)
- Resolution: 0.001 m/s
- Accuracy: 1% max reading + zero stability
- Zero Stability: Typically 0,01m/s, max 0,03m/s
- Calibration: From 0 to 3m/s. Control on 14 points. From 0 to 6m/s as an option. Calibrated for life if maintained correctly
- Minimum depth: 30 mm water with general wading rod
- Dimensions: 140 x 30 x 15mm
- Weight: 0.1kg without cable
- Cable: Polyurethane sheath, 3m standard (extra length optional)
- Operating temperature: -5 to 70 C
- Storage temperature: -20 to 70 C
Includes:
- 19-242 Fluvia RC3 Surface Control/Display
- 19-245 Sensa RV4XMiniVelocity Probe with standard 6 metre cable

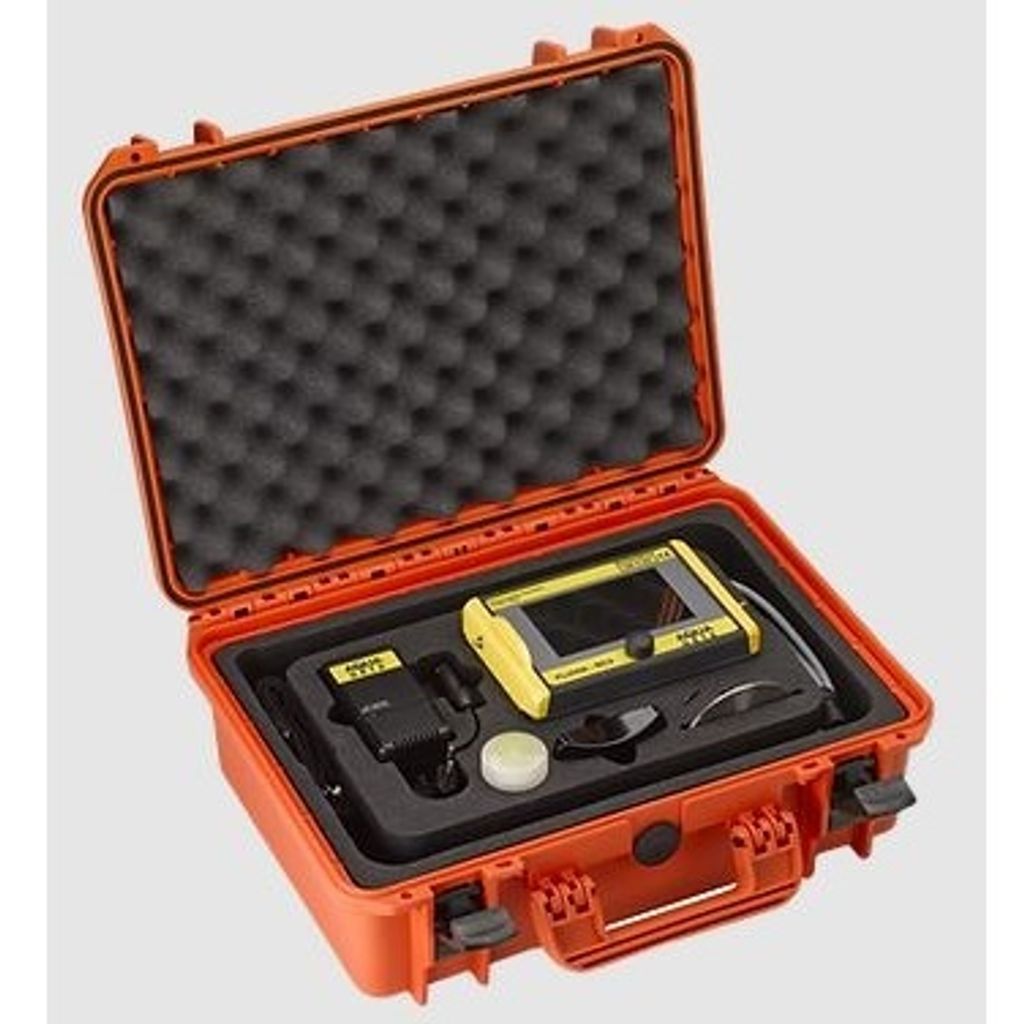

- 16-184-07 Orange Pelicase with compartments for Fluvia RC3, probe, charger and accessories
- 15-173-08 6x 316 stainless steel tubular rods scribed in cm, standard clamp, base plate and directional handle.
