The Garrett PD 6500i™ Walk-Through Metal Detector with Euro Plug is Garrett's industry-proven, high-security walk-through metal detector trusted by airports, government agencies, correctional facilities, courthouses, critical infrastructure, and military installations worldwide. Featuring advanced multi-zone detection, precise target localization, and exceptional throughput, the PD 6500i has been a benchmark in security screening for decades. The international version is supplied with a European (Euro) power plug and supports worldwide 100–240 VAC operation.
Key Features
- 33 pinpoint detection zones (11 horizontal × left, center, and right localization)
- Advanced Digital Signal Processor (DSP) technology for superior detection accuracy and reduced false alarms
- More than 20 preset application programs for airports, prisons, schools, government buildings, events, and commercial facilities
- 200 adjustable sensitivity levels for customized screening requirements
- Broadband detection technology capable of identifying both ferrous and non-ferrous metals
- Dual-sided LED zone indicators accurately identify the location of one or more metallic objects
- 2,300 selectable operating frequencies to eliminate interference between adjacent units
- Directional traffic counter with multiple counting modes
- Tamper-resistant security with key lock, cabinet lock, and dual-level access codes
- Optional networking capability for centralized monitoring and statistical reporting

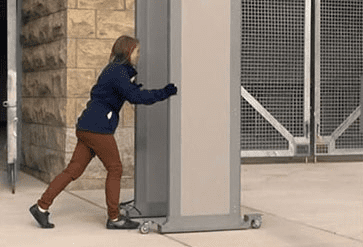

- Modular four-piece construction for quick installation and transport
- Available in IP55 or IP65 weather-resistant models
- Supplied with Euro Plug for international installations.
Specification Details
Detection Zones 33
Detection Programs 20+
Sensitivity Levels 200
Operating Frequencies 2,300 selectable
Passage Width 760 mm (30")
ADA Option 825 mm (32.5")
Overall Dimensions Approx. 900 × 2210 × 580 mm
Operating Temperature -20°C to +70°C
Humidity Up to 95% non-condensing
Protection Rating IP55 or IP65 (model dependent)
Power Supply 100–240 VAC, 50/60 Hz
Power Connection Euro Plug (International model)
Optional Accessories Battery module, networking module, remote controls, caster system, wireless synchronization
Typical Applications
- Airports
- Government buildings
- Correctional facilities
- Courthouses
- Border control checkpoints
- Military facilities
- Schools and universities
- Stadiums and event venues
- Critical infrastructure
- Corporate headquarters
