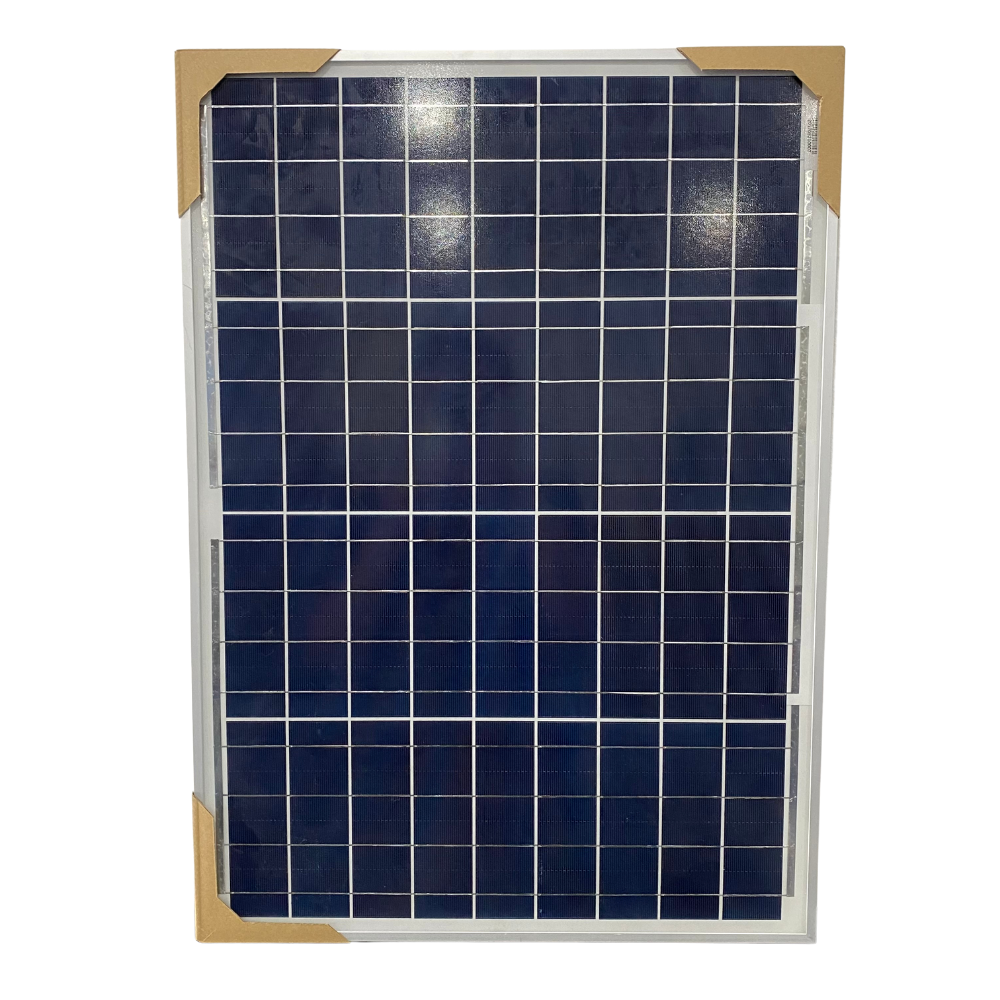

40W Polycrystalline Solar Panel high quality Poly Crystalline solar cell high efficiency for outdoor (ready stock)
Self collection available, please Chat with Seller for more details.
Cell Type: Polycrystalline Solar Cell
Rated Maximum Power (Pmax): 40W
Tolerance: 0~+3%
Voltage at Pmax (Vmp): 17.7V
Current at Pmax (Imp): 2.26A
Open-Circuit Voltage (Voc): 21.4V
Short-Circuit Current (Isc): 2.43A
Maximum System Voltage: 1000VDC
Maximum Series Fuse Rating: 15A
Operating Temperature: -40c to +85c
Weight: 3.2kg
Dimension (mm): 670*480*25
Manufacturer Warranty: 10 Years
Performance Warranty: >90% after 10 Years / >80% after 25 Years
Standard test condition: AM=1.5, E=1000W/m, TC=25c
All technical data at standard condition
Warranty 1 years on manufacturing defects only.
