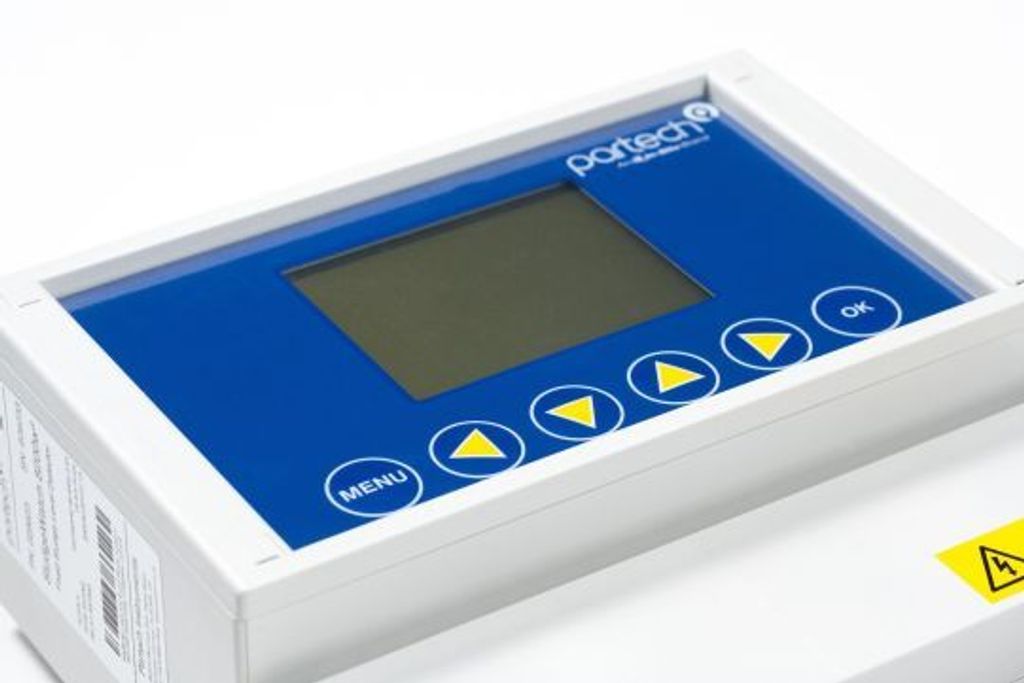

Partech 7300w² Monitor (100 - 240VAC, 2 x 0/4-20mA Output, 3 x Relay Outputs)
The 7300w² Monitor is a water monitoring system and the core product in the WaterWatch² range. The monitor is designed to interface with all of the sensors in the WaterWatch² range. The monitor specification provides all the connections required for 1 or 2 sensors, systems can be created by the use of expansion boxes to include multiple sensors.
Combining sensors provides a very cost effective way of simultaneously monitoring parameters such as dissolved oxygen and suspended solids in an activated sludge plant, or pH and turbidity at a treatment works outfall where the sensors can be located close together.
Dimensions (hxwxd): 185 x 213 x 95 mm
Weight: 1.4 kg
Protection Class: IP65
Enclosure Material: Polycarbonate (PC)
Cable Entries: 1x M20, 4x M16, 1 x USB Type A
