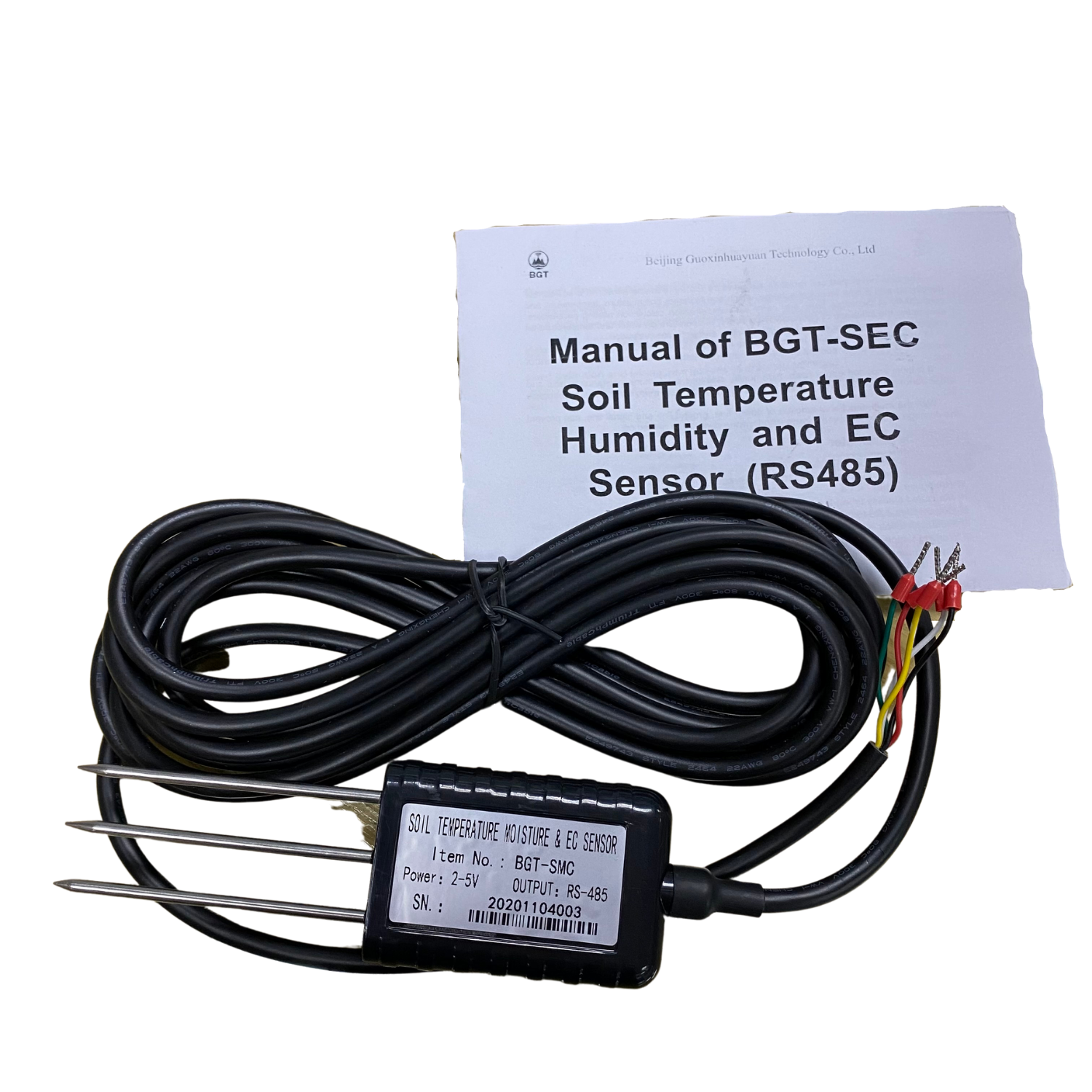

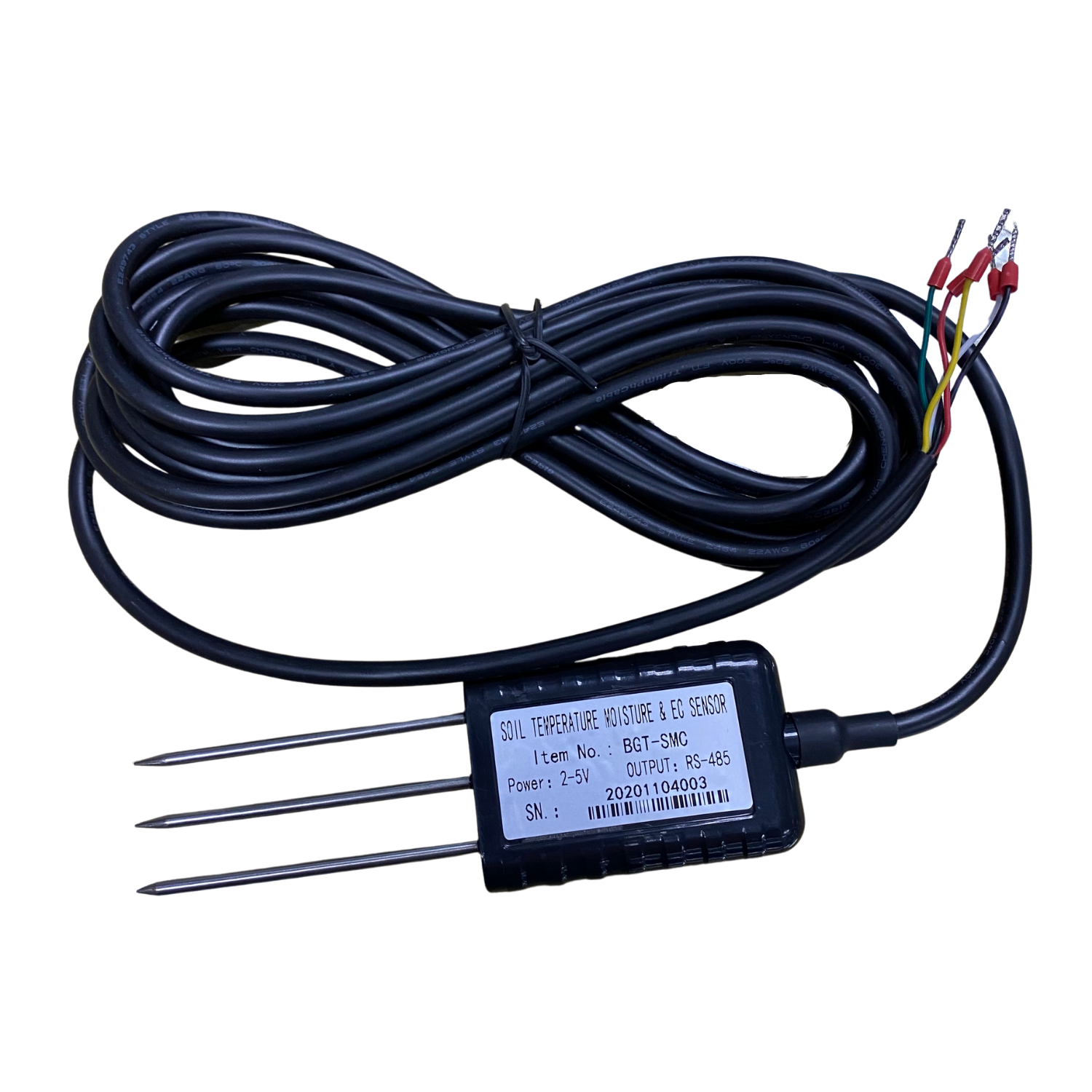

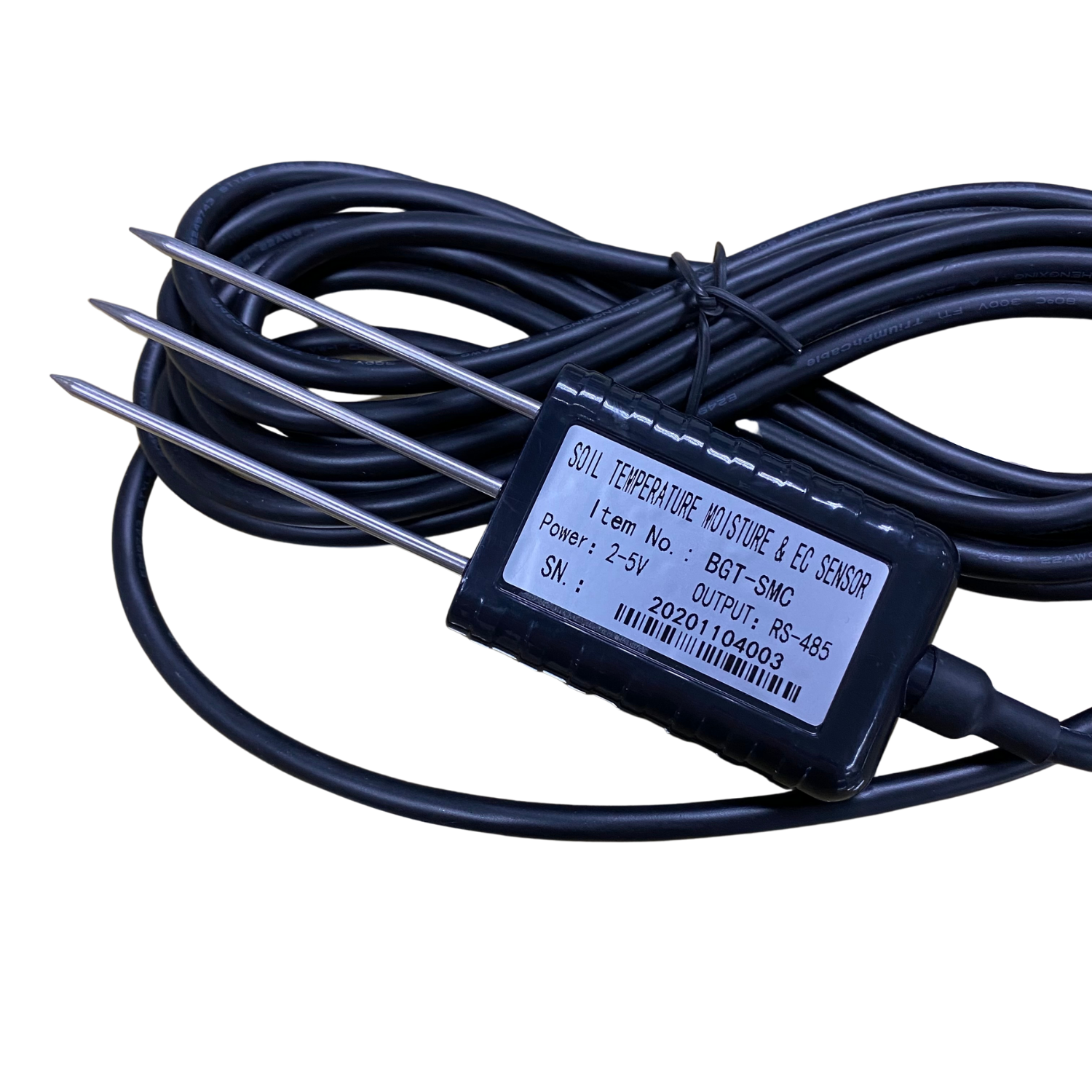

BGT-SMC Soil Moisture with Soil EC Sensor 3.5m cable with output 4-20 mA

RM 650.00

Power Supply 12-24V
Output : 4-20mA
Cable Length : 3.5m (Standard); others for optional
Working voltage:2-5VDC;5-24VDC
Quiescent current: peakvalue <30mA, Average<10mA
Response Time:<1 s
Measured stability time:2s
Protection level:IP68
Working temperature range:-40℃~85℃
Measurement  area: center on the central probe in a
Cylinder with a diameter of 7cm and a height of 10cm
Measured Parameters Of moisture:
Measuring range:  0-100.00%
Unit : V/V%,Volumetric moisture content of soil
Resolution :  0.01%
Accuracy : ±3%(0-53% ; ±5% (>53%)
Swap precision :  <3%
Repetition measurement error : <2%
Response time when powered : 1s
Measured stability time : <2s
Measurement principle : Frequency domain (FDR) add
temperature and conductivity correction
Measured Parameters Of EC (Conductivity):
Measuring range:   0-20000uS/cm(25℃) (0-20.0EC)
Unit : uS/cm,Micro Siemens/cm
Resolution :   1uS/cm
Accuracy : 2%FS,2%of the value Error<0.3℃(-10℃~50℃)
Swap precision :  <2%FS
Repetition measurement error : <2%FS
Response time when powered : 1s
Measured stability time : <2s
Measurement principle : Conductivity measurement, plus temperature compensation


Measured Parameters Of Temperature :
Measuring range: -40.00℃~85.00℃


Unit :
℃ centigrade degree

Resolution :    0.01℃

Accuracy : Error<0.3℃(-10℃~50℃) others<0.6℃

Swap precision :   <0.3℃

Repetition measurement error :  <0.2℃


Response time when powered : 1s


Measured stability time : <2s


Measurement principle :  RTD Thermal sensor,plus non linear correction
