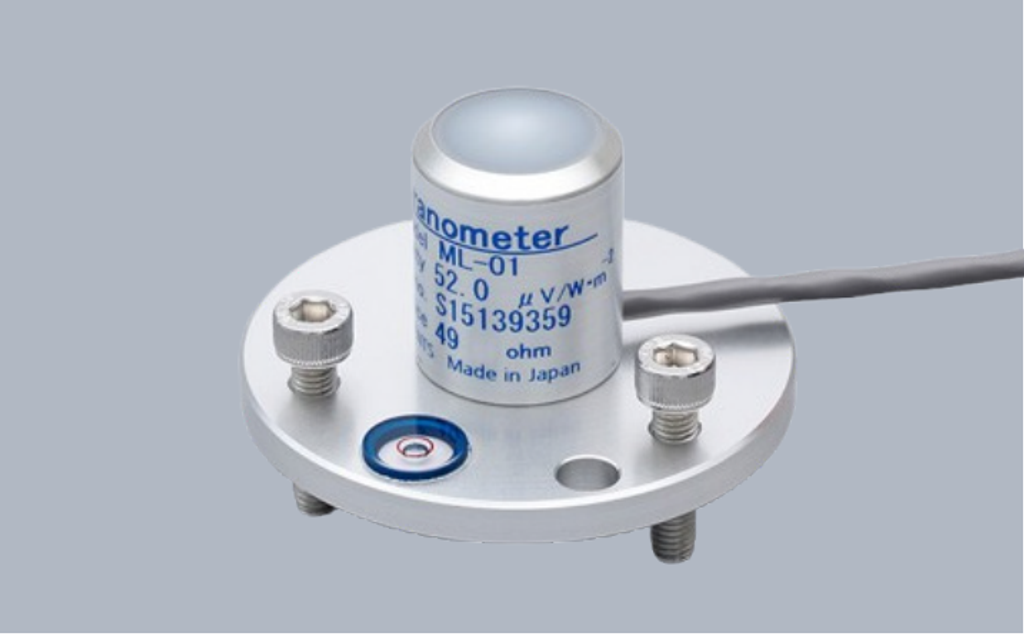

EKO Instruments ML-01 Si Pyranometer
The compact, industrial-grade ML-01 silicon pyranometer is made for high-quality irradiance measurements. ISO 9060:2018 Class C, fast response, light but tough, the ML-01 features a mono-silicon detector with a UV-resistant cone-shaped diffuser that helps to minimise soiling and water deposition, delivering an excellent cosine response, even at low solar elevation angles.
Kindly email to sureserv@sureserv.com.my for product inquiry and quotation
The sensor can be mounted in the horizontal position for global horizontal measurement applications with a standard removable mounting plate with a spirit level and levelling feet.
Made in Japan and manufactured to EKO's strict quality standards, the ML-01 comes with an optional mounting plate 2-year recommended recalibration interval and unique calibration, compliant with international standards, for a cost-effective alternative to larger thermopile-based sensors, easy to integrate into any project or application; solar, agricultural, automotive and more.
- Small, Tough, & Easy to Integrate in Any Application
- Excellent Cosine Response at Low Solar Elevation Angles
- Low Temperature Dependency, Suited to Hot & Cold Conditions
- Fast Response Photodiode Detector for Always Accurate Measurements
- Mono-Silicon Detector with UV Resistant Diffuser & Removable Mounting Plate
SPECIFICATIONS:
| ISO 9060:2018 | Class C |
|---|---|
| Response time 95% | < 1 msec |
| Zero offset A – Thermal Radiation (200W/m²) | 0 W/m² |
| Zero offset B – Temperature change (5K/hr) | 0 W/m² |
| Zero offset C – Total zero off-set | 0 W/m² |
| Non-stability (change/year) | ± 2 % |
| Non-linearity (100 to 1000W/m²) | < 0.2 % |
| Directional Response (at 1000W/m² | 0 to 80°) | < 10 W/m² |
| Spectral Error | ± 3.07 % |
| Temperature response (-20°C to 50°C) | < 0.15 % |
| Tilt Response (0-90° | 1000W/m²) | 0 % |
| Sensitivity (Approx.) | 50 µV/W/m² |
| Impedance | 50 Ω |
| Wavelength Range | 400 to 1100 nm |
|---|---|
| Irradiance range (W/m²) | 0 to 2000 |
| Signal Output | Analog (mV) |
| Sensor Diagnostic | N/A |
| Operating temperature | -30 to 70°C |
| Supply voltage | N/A |
| Power Consumption | N/A |
| Ingress protection | Equivalent to IP67 (IEC60529, JIS C0920) |
| Calibration traceability / uncertainty | N/A |
| Standard Cable Length | 5 m |
| Leveling Plate | Optional |
| IEC 61724-1:2021 | IEC Class C |
