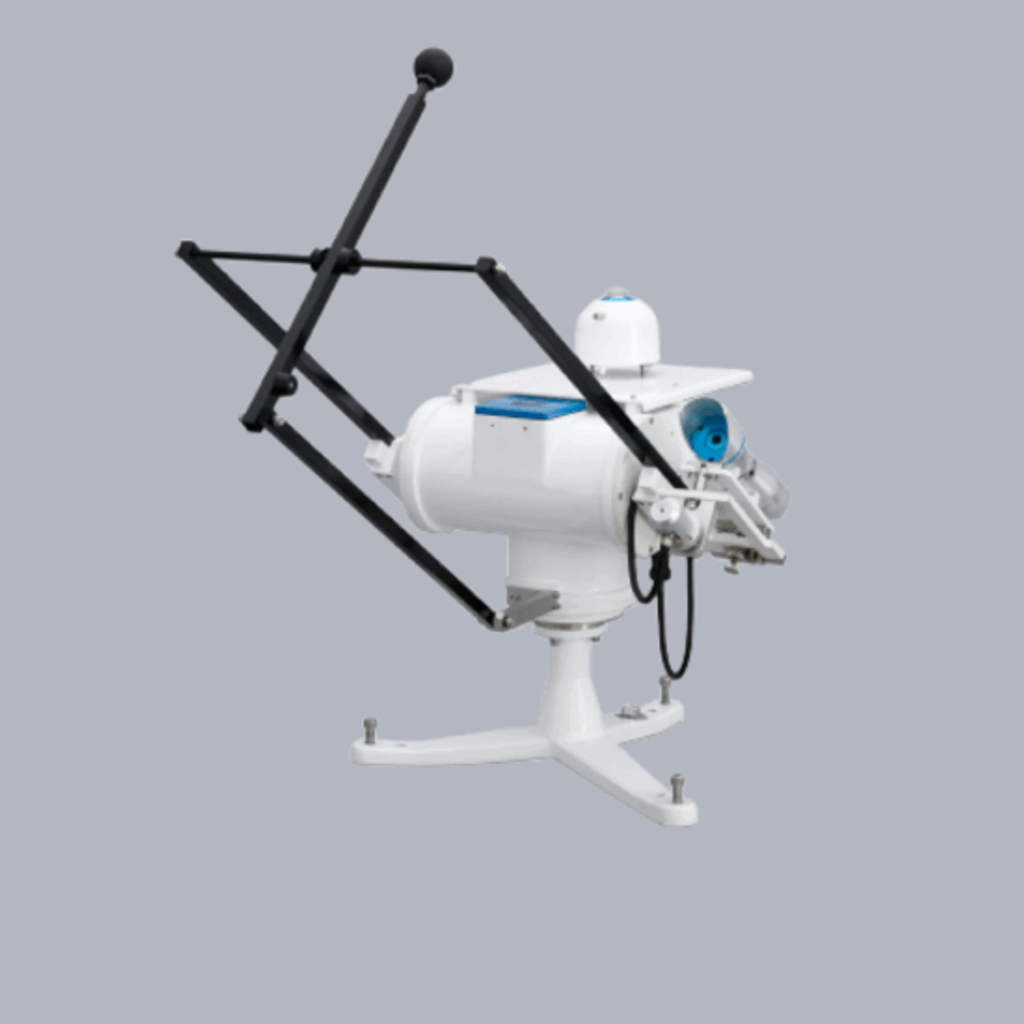

EKO Instruments STR-22G Sun Tracker

The compact 2-arm STR-22G sun tracker is perfectly suited to support all kinds of Global, Diffuse and Direct Radiation measurement sensors. Besides the standard EKO sensor mounts, various alternative mounts for non-EKO sensors are available. Featuring a fully automated set-up procedure via an onboard GPS receiver, providing increased reliability and enhanced functionality, the compact Sun-Tracker guarantees accurate sun tracking and pointing of the attached solar sensors from sunrise to sunset.

Kindly email to sureserv@sureserv.com.my for product inquiry and quotation

The 2-axis tracker automatically adjusts to the sun’s position by the sun sensor closed-loop control system, even if the tracker is not oriented or levelled properly. The sun-tracker comes standard with a small table tripod (larger tripod available). The 24 VDC low power consumption tracker can be powered by a solar-powered battery system or DC power supply. A wide range AC power adapters can be supplied to connect to the grid.

• All-Weather Tracking with Integrated GPS Receiver & 4-Quadrant Sun Sensor
• Low Power Consumption
• Quick, Easy, Fully Automated Setup
• Easy Integration with any DAQ system
• Harmonic Drive® mechanical gear system, for maximum positioning accuracy
• Deployed in Antarctica, proven in extreme climates worldwide
• RS-232 serial interface for position control

SPECIFICATIONS:
