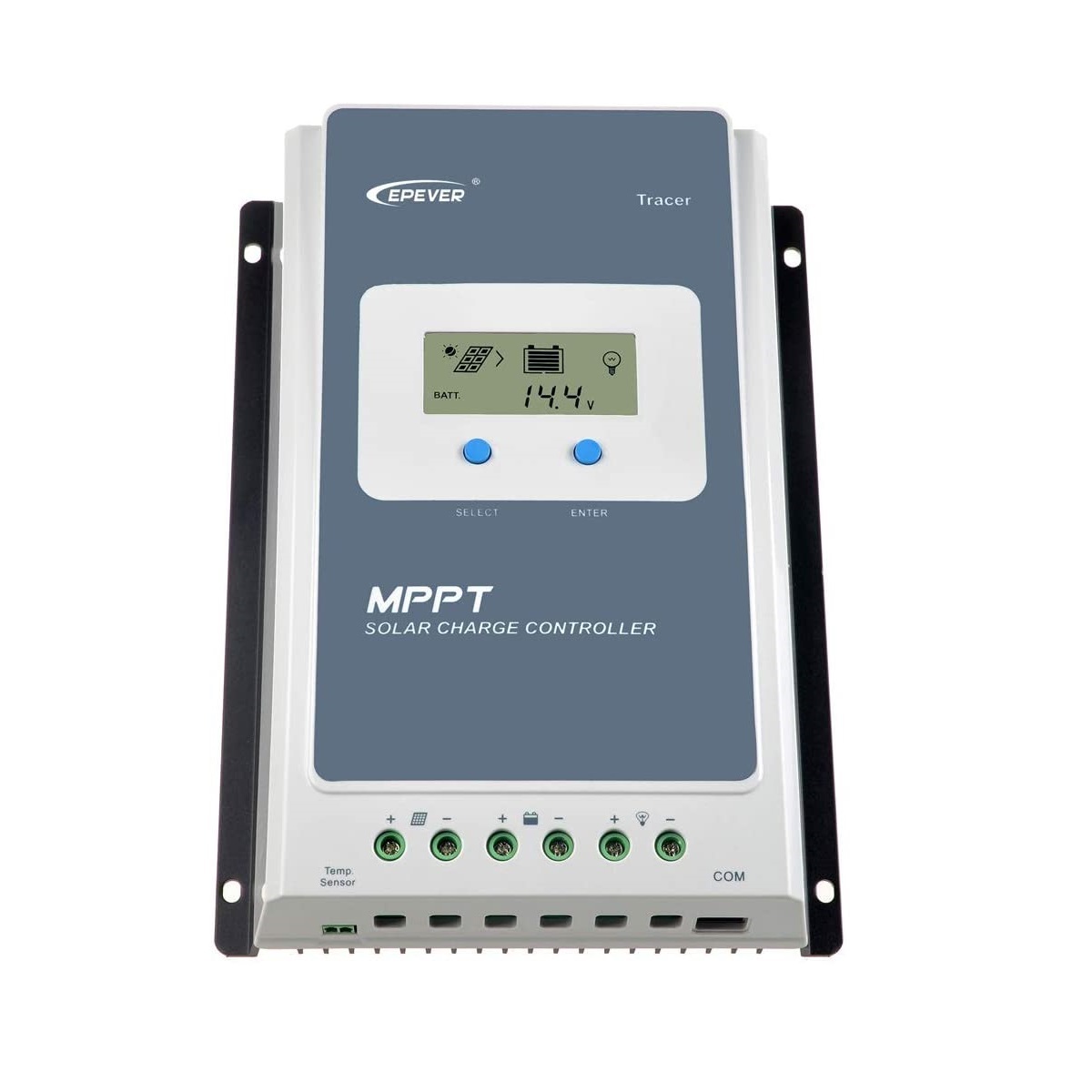

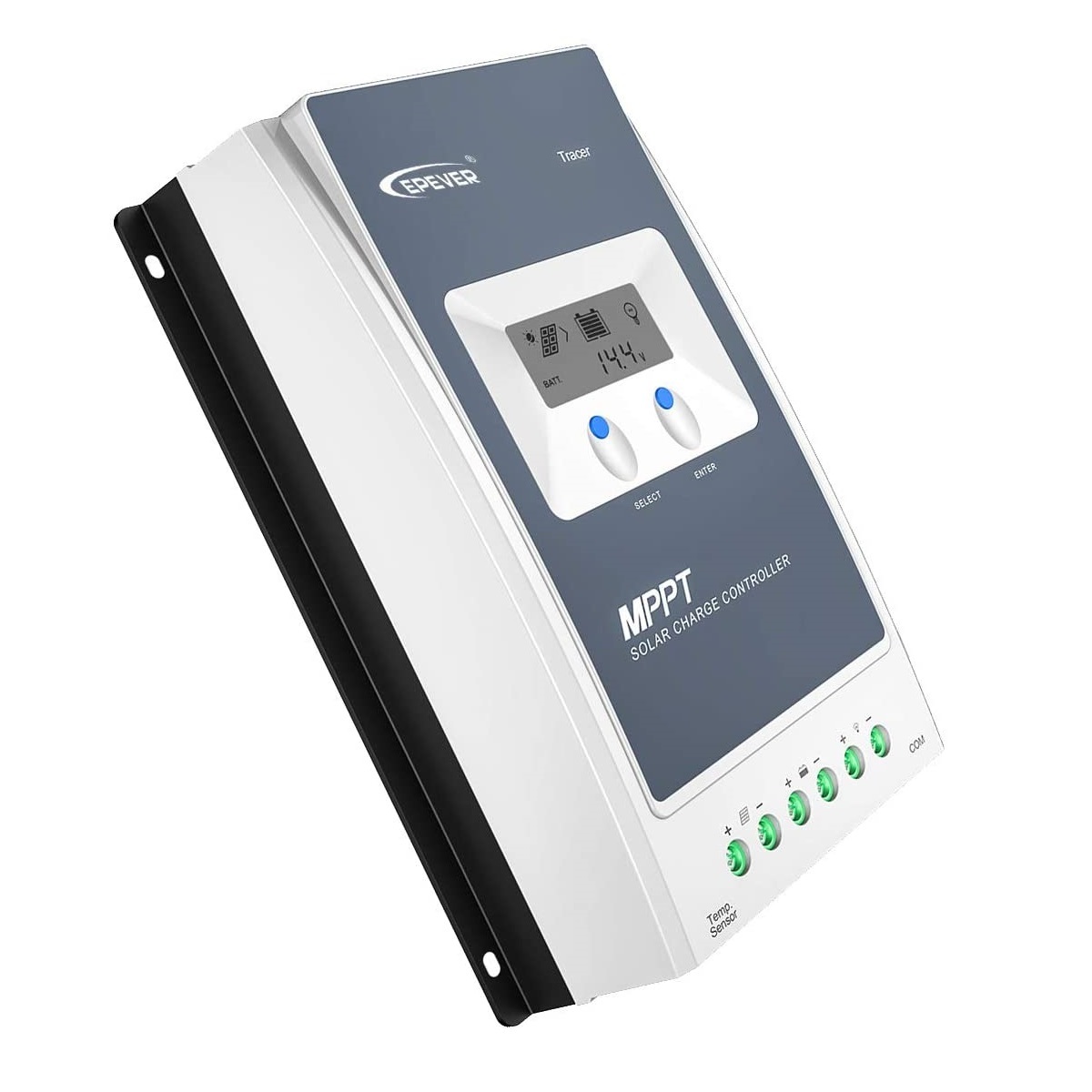

EPEVER® MPPT Solar Charge Controller Tracer 4210AN, 40A, 12V/24VDC

RM 695.00

- Charging current: 40A, Max. PV open circuit voltage: 100V, System nominal voltage: 12V / 24VDC
- MPPT tracking efficiency over 99.5%
- Support battery types: Lead-acid battery: AGM, GEL, Flooded, User; Lithium battery (additional accessories from EPEVER such as eBox-Wifi / Bluetooth, USB-RS485 cable are required for parameter setting of the lithium battery and USER)
- Standard Modbus communication protocol with RS485 interface
- Maximum charge conversion efficiency of up to 98%
- Real-time energy statistics function

Model of manufacturer Tracer4210AN
EAN 4260558570455
Article number 2102440
System nominal voltage 12/24V DC Auto①
Related charge current 40A
Related discharge current 40A
Battery voltage range 8~32V
Max. PV open circuit voltage 100V② 92V③
MPP voltage range (Battery voltage +2)~72V
Max. PV input power 520W/12V, 1040W/24V
Max. PV Array power 780W/12V, 1560W/24V
Self-consumption ≤12mA
Temperature compensate coefficient -3mV/℃/2V (Default)④
Grounding Negativ
RS485 interface 5VDC/100mA
Working environment temperature -25°C bis +45°C
Enclosure IP30
Dimension 252 * 180 * 63mm
Weight 1,65kg
