HCCK HCDAR-66 Non Contact Radar Water Level Sensor for Liquid, Slurry, Dew Occasions 0 - 20m
Application: Liquid, Slurry, Dew Occasions
Measuring Range: 0～20m
Connection Process: Flange
Medium Temperature :（-40～120）℃
Process Pressure :（-0.1～2）MPa
Signal Output : (4～20)mA HART/RS485 MODBUS
Explosion-Proof Grade: Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb
Protection Grade: IP68
Frequency Range: 26GHZ
This series of HCDAR-6X adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.
1.small beam angle, energy concentrated, stronger ability anti-interference, the accuracy and reliability are greatly improved.
2.small size antenna, convenient for installing.
3.smaller measuring blind zone, works well for small tank
4.shorter wavelength, more suitable for measuring the level of small particle materials
5.non-contact measurement, no abrasion, no pollution.
6.signal output has two options: two-wire 4-20mA @HART or four-wire RS485 @MODBUS protocol , four-wire power supply can reach 12V DC as low as possible.

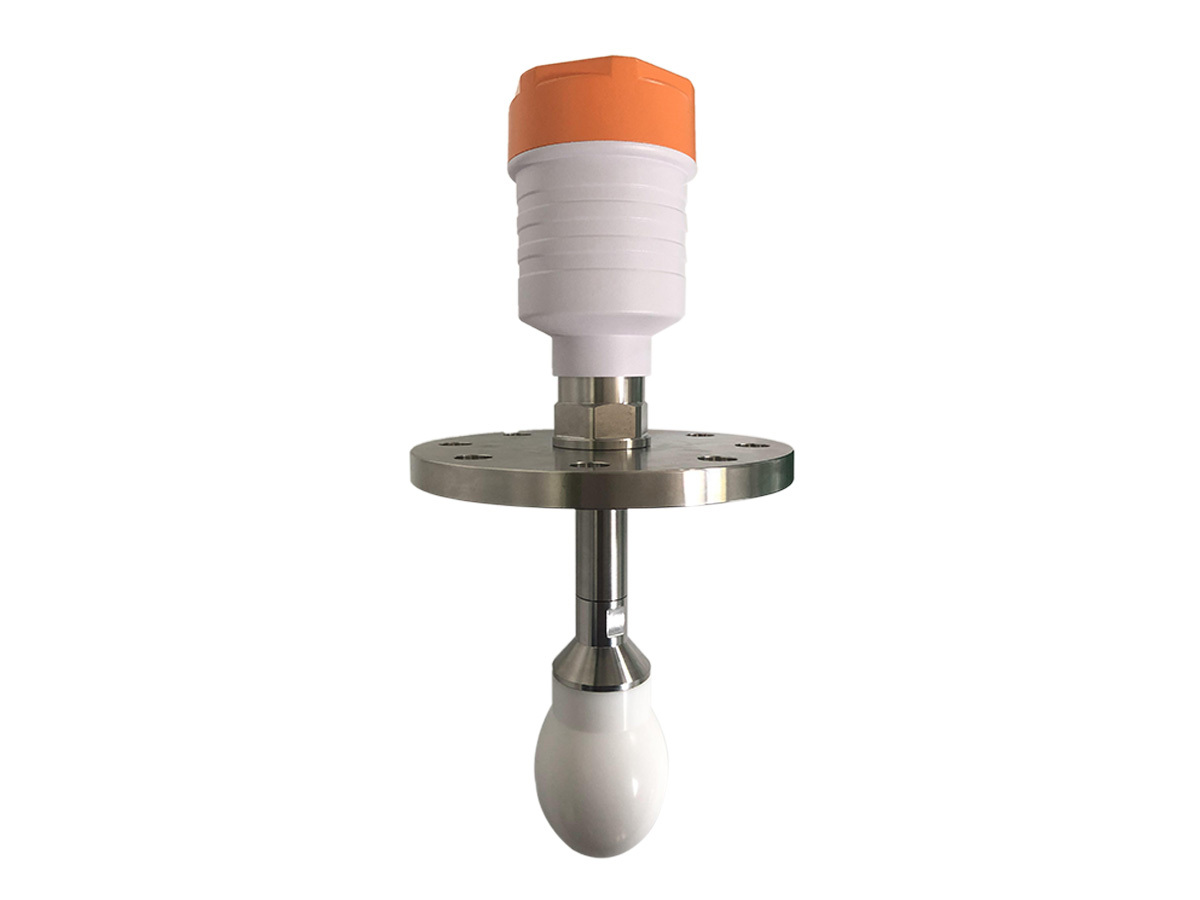

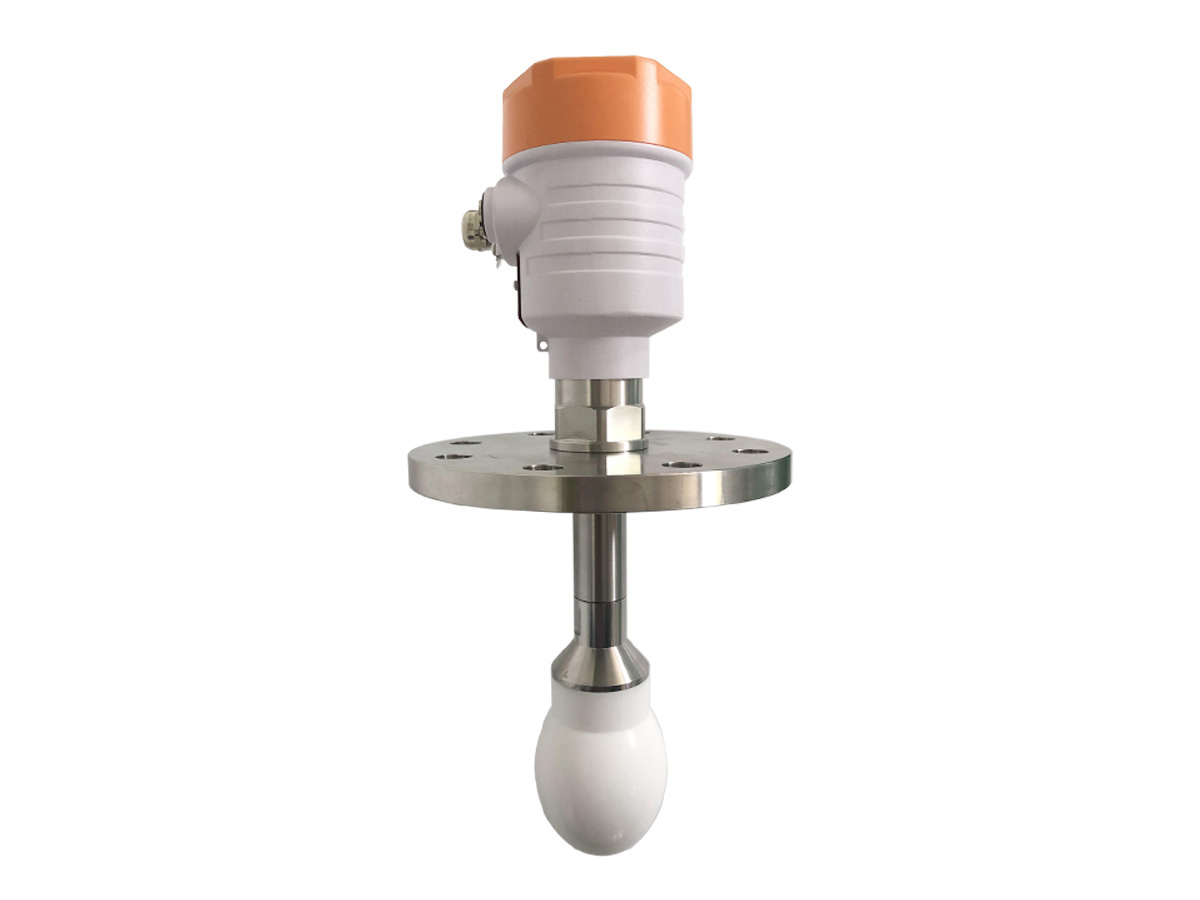

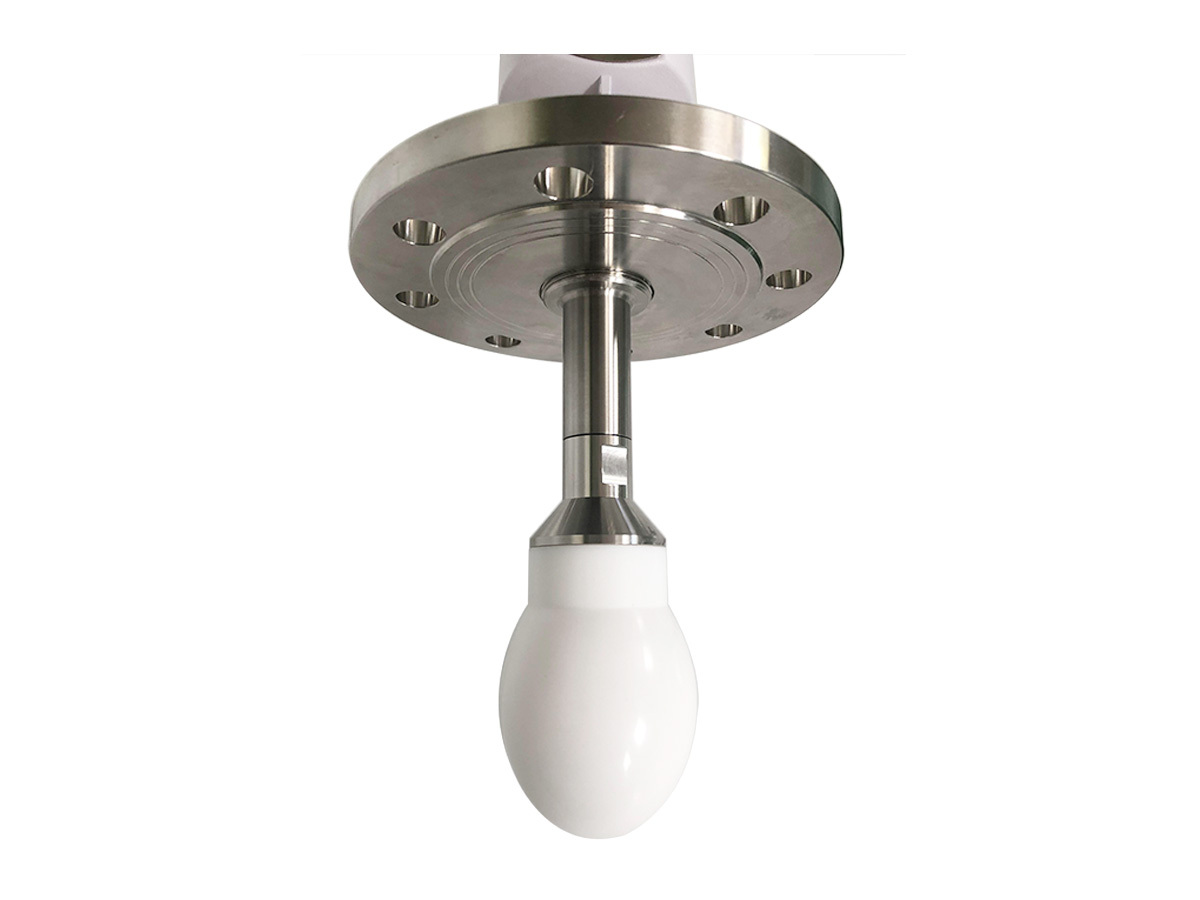

HCDAR-66 is a water droplet type PTFE antenna, used in liquid, slurry, condensation occasions.
