Prova RM1500 Tachometer

RM 629.00 RM 899.00
Prova RM1500 Tachometer Ratings: 0 - 0 votes

Prova RM1500 Tachometer

Features :

5 Digits LCD Display
Light Reflex Measurement
Range from 10.00 to 99,999 RPM
Measuring Distance 50 to 300 mm
Event Counter elapsed time
Max/Min/Hold : True Average
Auto Range RPM
Optical Measurement & Contact Measurement
Even Counter ( 0~99,999)
RS-232 Interface ( Optional DT- 1501 )
Contact RPM and circumferential Velocity measurement in one simple adaptor( optional DT- 1502)
RM 1500 / 1501 Specifications: (23oC+/-5oC)
CE Safety Approved
General Specification: Battery: Four 1.5V battery (AA, UM3)
Time Base: 4.000MHz Quartz Crystal
Operating Temperature: 0oC~ 50oC ( 32oF~122oF )
Reflective light: Red LED
Size: 6.8"(L) x 2.5"(W) x 1.4"(H);175mm(L) x 65mm(W) x 36mm(H)
Weight: 250g (including battery)
Accessories: Carrying Case x 1 ,Reflective tape x 1,Instruction Manual x 1
(Option: Contact Adaptor( Optional DT-1502)
ORDERING INFORMATION

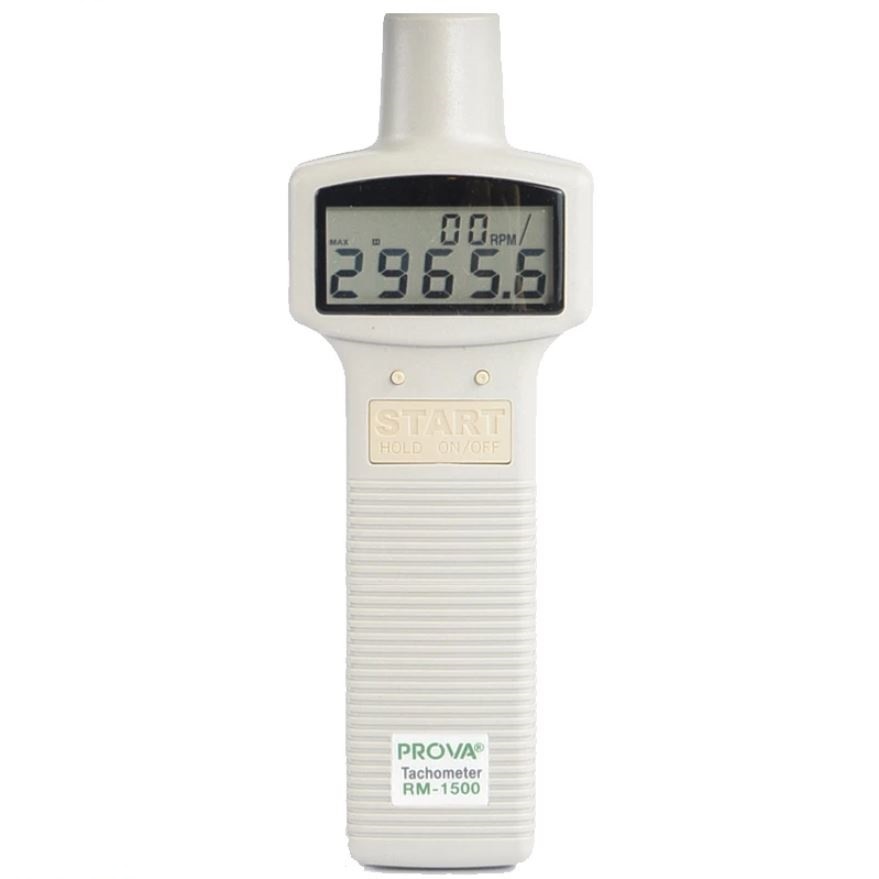

MODEL : RM 1500 Digital Optical Tachometer
MODEL : RM 1501 RS-232 interface, Software and RS-232 cable

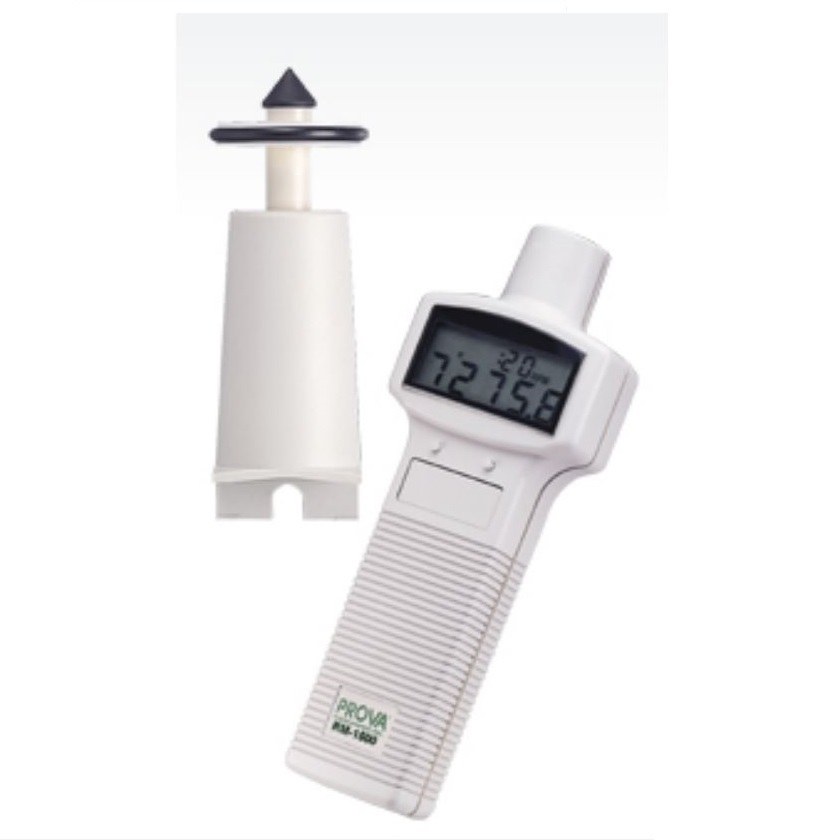

MODEL : RM 1502 Contact Adaptor ( See photo, please download data sheet by cliking upper data file key)
RM-1500 (1501) : RPM (non-contact measuring , Autorange): Range Resolution Accuracy:
RPM (non-contact measuring , Autorange): Range Resolution Accuracy:
10.0~6,000.0rpm 0.1rpm +/-0.01%+/-1digit
6,000.0~9,999.9rpm 0.1rpm +/-0.02%+/-1digit
1,0000~12,000rpm 1rpm +/-0.02%+/-1digit
12,000~30,000rpm 1rpm +/-0.05%+/-1digit
Over 30,000rpm 1rpm +/-0.1%+/-1digit
RM-1500 (1501) +RM-1502: RPM (contact measuring , Autorange): Range Resolution Accuracy
RPM (contact measuring , Autorange): Range Resolution Accuracy
10.0~6,000.0rpm 0.1rpm +/-0.01%+/-1digit
6,000.0~9,999.9rpm 0.1rpm +/-0.02%+/-1digit
1,0000~12,000rpm 1rpm +/-0.02%+/-1digit
12,000~30,000rpm 1rpm +/-0.05%+/-1digit
Over 30,000rpm 1rpm +/-0.1%+/-1digit

Certificate: CE



RangeResolutionAccuracy
No-Contact RPM10.00~99,9990.01 / 0.1 / 10.04%±2 dgts
rps (Hz)0.2~2,0000.001 / 0.01 / 0.10.04%±2 dgts
Contact RPM10.00~29.9990.01 / 0.1 / 10.04%±2 dgts
m/min1.000~2,999.90.001/ 0.01 / 0.10.04%±2 dgts
ft/min1.000~ 2,999.90.001/0.01/0.10.04%±2 dgts
yard / min2.00~3,0000.01/ 0.1 / 10.04%±2 dgts
rps (Hz)0.2 ~ 5000.001/ 0.01 / 0.10.04%±2 dgts
