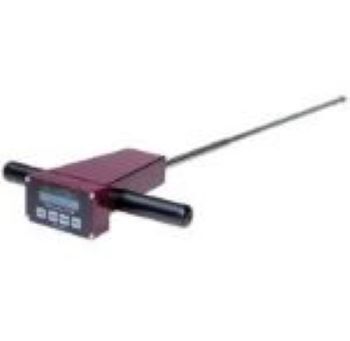

The Spectrum FieldScout SC 900 Soil Compaction Meter (Penetrometer) is a reliable tool for measuring soil compaction and assessing field conditions. Designed for farmers, agronomists, turf managers, and researchers, this handheld penetrometer helps you understand soil density and make informed decisions about irrigation, tillage, and crop management.
Key Features
Accurate Soil Compaction Readings Measures penetration resistance to identify compacted layers that limit root growth.
Handheld & Easy to Use Lightweight design with simple operation for field use.
Digital Display Provides clear, easy-to-read results instantly.
Portable Perfect for scouting multiple locations quickly.
The Spectrum FieldScout SC 900 Soil Compaction Meter (Penetrometer) is a handheld tool for measuring soil compaction to improve soil management, increase crop yields, and identify areas that need tillage, crop rotation changes, or cover crops.
- Measures soil compaction up to 18 in (45 cm) depth
Cone tips included: 1/2 in and 3/4 in (3/4" ideal for coarse soils)
Ultrasonic depth sensor captures readings every 1 in (2.5 cm)
Penetration resistance measured by internal load cell
Readings displayed in PSI or kPa
Equipped with internal data logger and RS-232 port
Stores up to 772 measurements (579 with GPS/DGPS connected)
Connects to GPS receivers with serial output*
Configurable and downloadable via FieldScout® software (USB-to-3.5mm adapter included)
Includes carrying case and depth target
2012 Upgrade Features: New 3/4" cone tip and improved handling of insertion errors. Older units can be upgraded with SC900 Upgrade Package (Item #6110FSUP).
GPS Recommendation: Garmin GPS 73 Handheld GPS provides accurate positioning using WAAS corrections (requires GPS/DGPS cable and serial interface cable).
