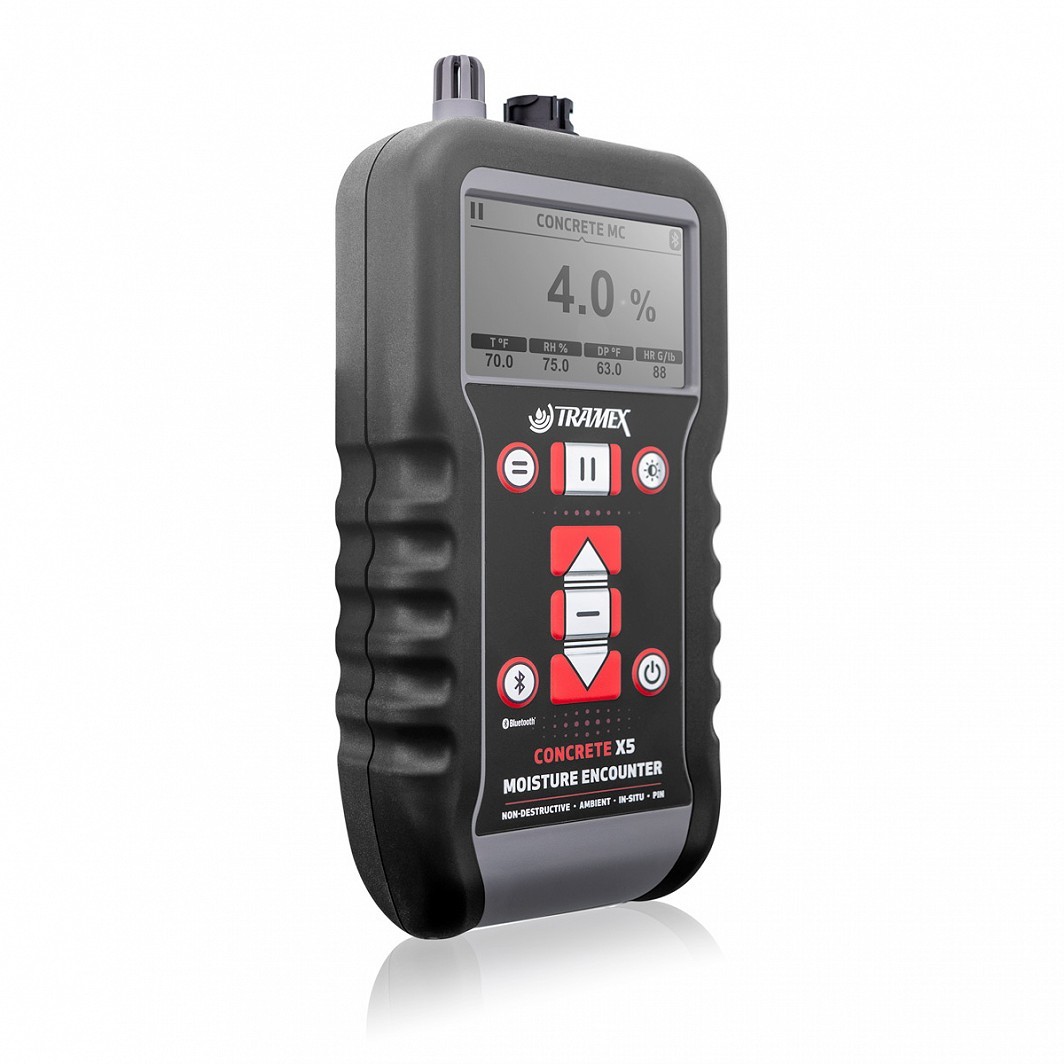

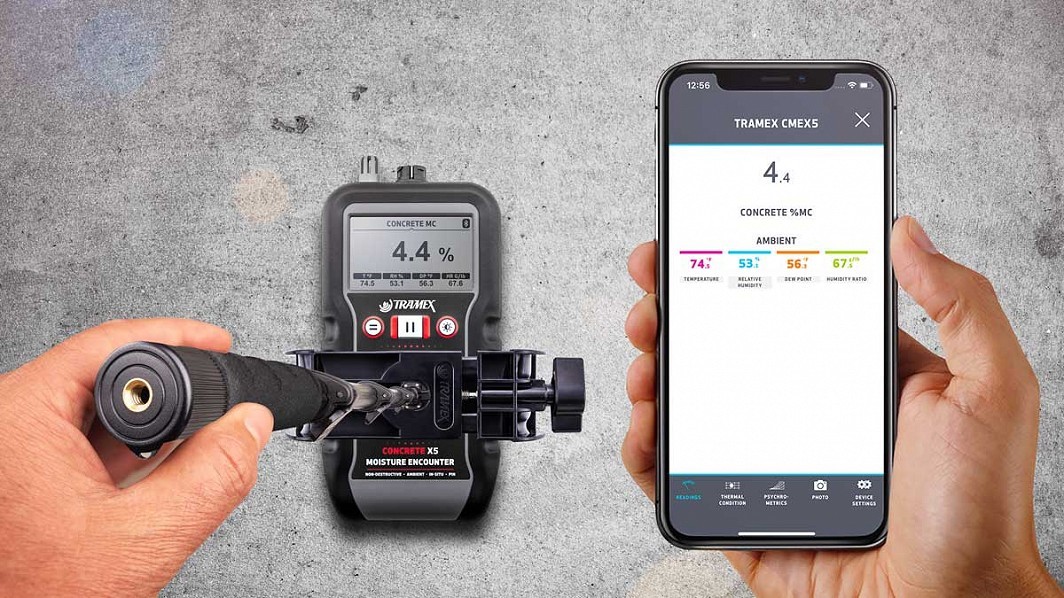

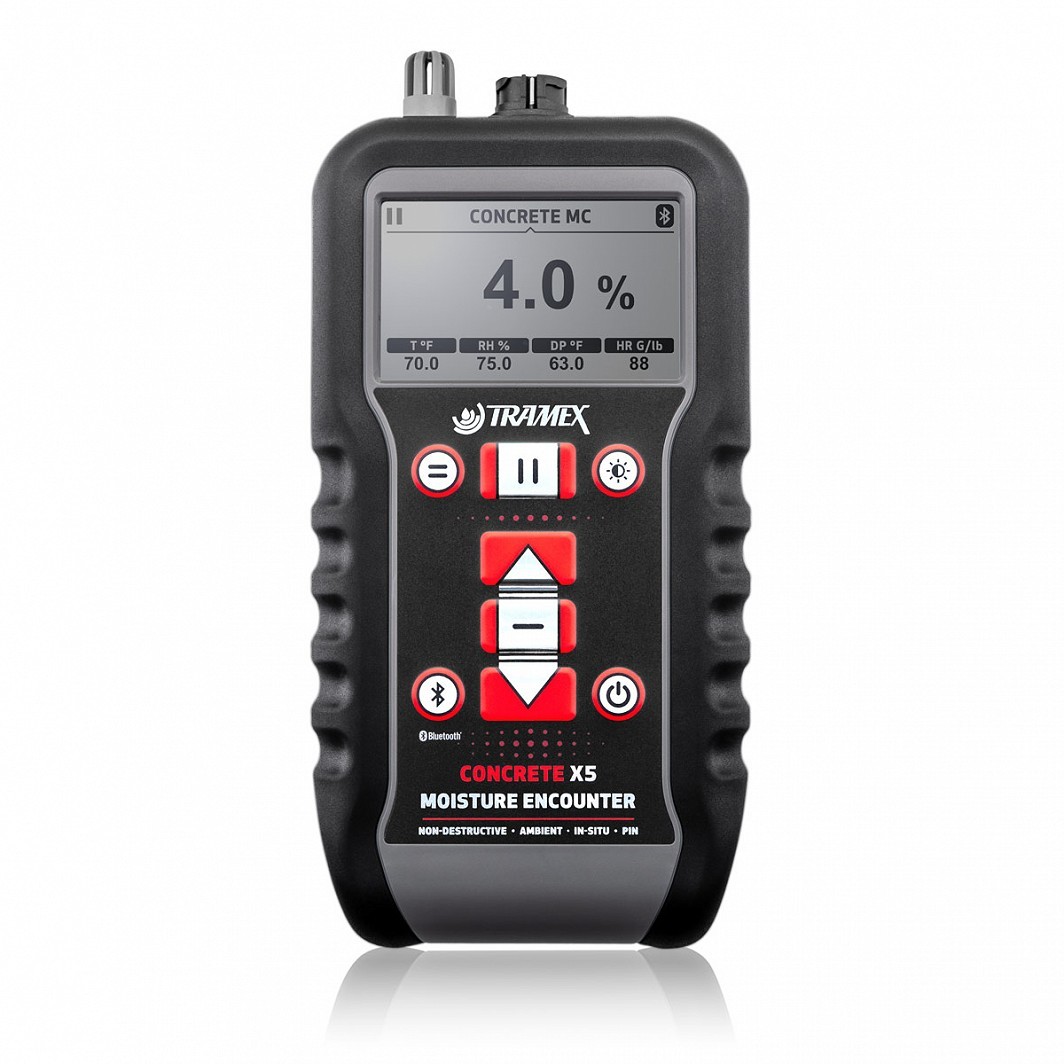

Tramex Concrete Moisture Encounter X5 - CMEX5

RM 3,548.00

The Concrete Moisture Encounter X5 detects and evaluates the moisture conditions within the slab or screed by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material. The Concrete Moisture Encounter X5 determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear digital dial.



Size: 7.1" x 3.4" x 1.6" (180mm x 85mm x 40mm)

Weight: 12.59oz (357g)

Construction: ABS Body

Power: 2 x AALR6 ALKALINE (included)

Display: Digital

Depth of penetration in concrete: approx. 3⁄4" (20mm)

Measuring range:

Moisture content for Concrete: 0 → 6.9 %

Comparative for Gypsum floor screed: 0 → 12

CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3

Reference scale: 0 → 100

Relative Humidity 0 → 99%

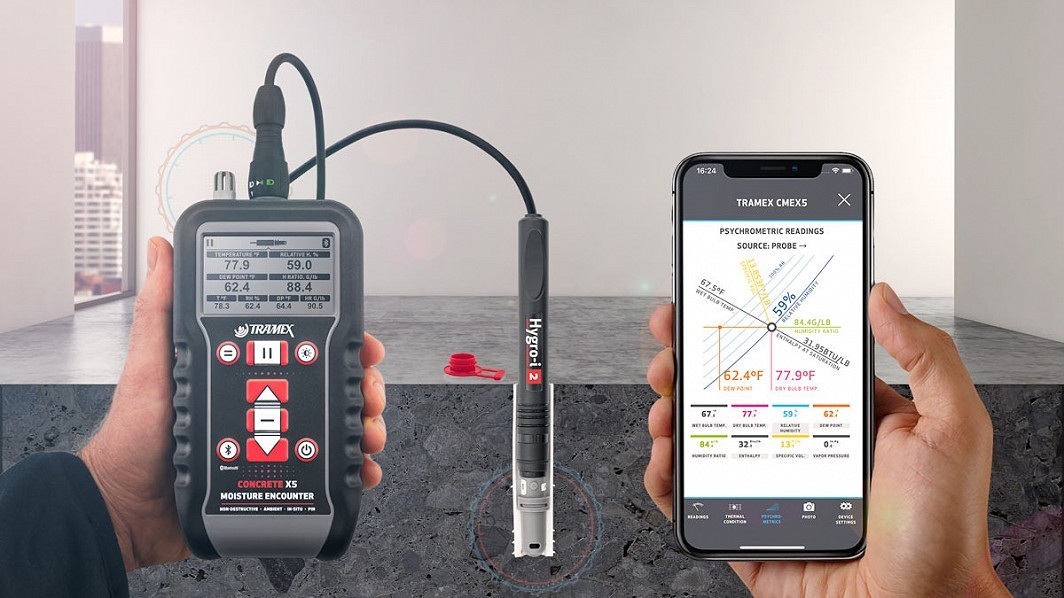

(with optional Hygro-i2 ® probe): Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F

Moisture content for wood (with optional wood pin probes): 5 → 30 %


Tramex CMEX5 Data Sheet
