*discount* Lanry TF1100-DC Dual-channel clamp on ultrasonic flowmeter With SPAN Certificate in Sewerage

RM 16,998.00

TF1100-DC Dual-channel Wall-mounted Transit Time Ultrasonic Flowmeter works on the transit-time method. The clamp-on ultrasonictransducers (sensors) are mounted on the external surface of the pipe for non-invasive andnon-intru sive flow measurement of liquid and liquefied gasses in fully filled pipe. Two pairs oftransducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.

This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.




Features:


   1. Dual channel non-invasive transducers to ensure high accuracy 0.5% of the flow meter.

   2. Easy to install, cost effective, and require no pipe cutting or processing interrupt.

   3. Wide liquid temperature range: -35℃~200℃.

   4. Data logger function.

   5. Aluminum or Stainless steel SUS304 sensors for your optional.

   6. Thermal energy measurement capability can be optional.

   7. For commonly used pipe materials and diameters from 20mm to 6.0m.

   8. Wide bi-directional flow range of 0.01 m/s to 15 m/s.

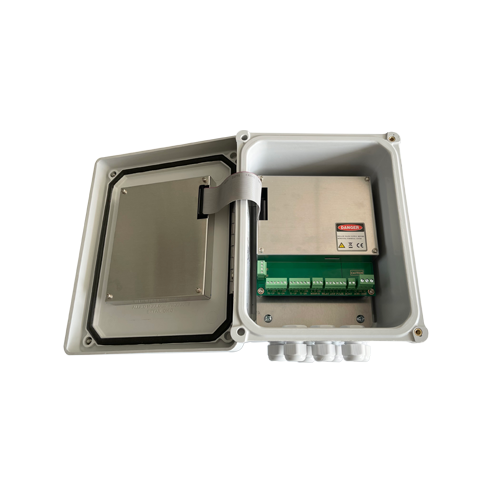

Wall-mounted Transit-time Ultrasonic Flowmeter

Model: TF1100-DC-A-1-6 /LTD-2A-N--10m &LTI-S-S-10m

Transmitter: wall-mounted

Power supply: 85-265VAC

Output:4-20mA& Datalogger

Transducer Type: 2A for DN40-5000 pipe( clamp-on) & S for

DN65-4000( insertion)

Transducer Temperature: -35~85℃

Temperature Input Sensor: None

Cable length: 10m
