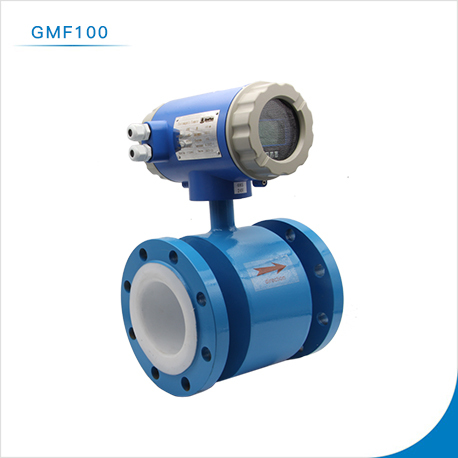

GMF100 intelligent digital Electromagnetic Flow Meter for sanitary food, sewage, slurry, acid and alkali solution with SPAN Certificate in Sewerage

GMF100 intelligent digital electromagnetic flow meter is composed by sensor and transmitter. A Magnetic flow meter, also called electromagnetic flow meter, mag flow meter, or magmeters. A magnetic flow meter is a volumetric flow meter that works with principle of magnetic technology. Magnetic flow meters do not have any moving parts. Magnetic flow meter is ideal for wastewater applications or any dirty liquid which is conductive or water based. Magnetic flow meters are also ideal for applications where low-pressure drop and low maintenance required. A range of liner materials, electrode options, and line sizes accommodate a wide variety of process application.

certified by SPAN , with SPAN certificate in Sewerage.

Parameters;

DN50 size

Compact type Grey color

316L electrode

CR lining

0.5% accuracy

carbon steel housing

IP65(compact type)

85-250VAC power

4-20mA/pulse output MODBUS RS485

DIN PN16 flange

Weight: 14kg

Dimension :42 x 30 x 30cm
