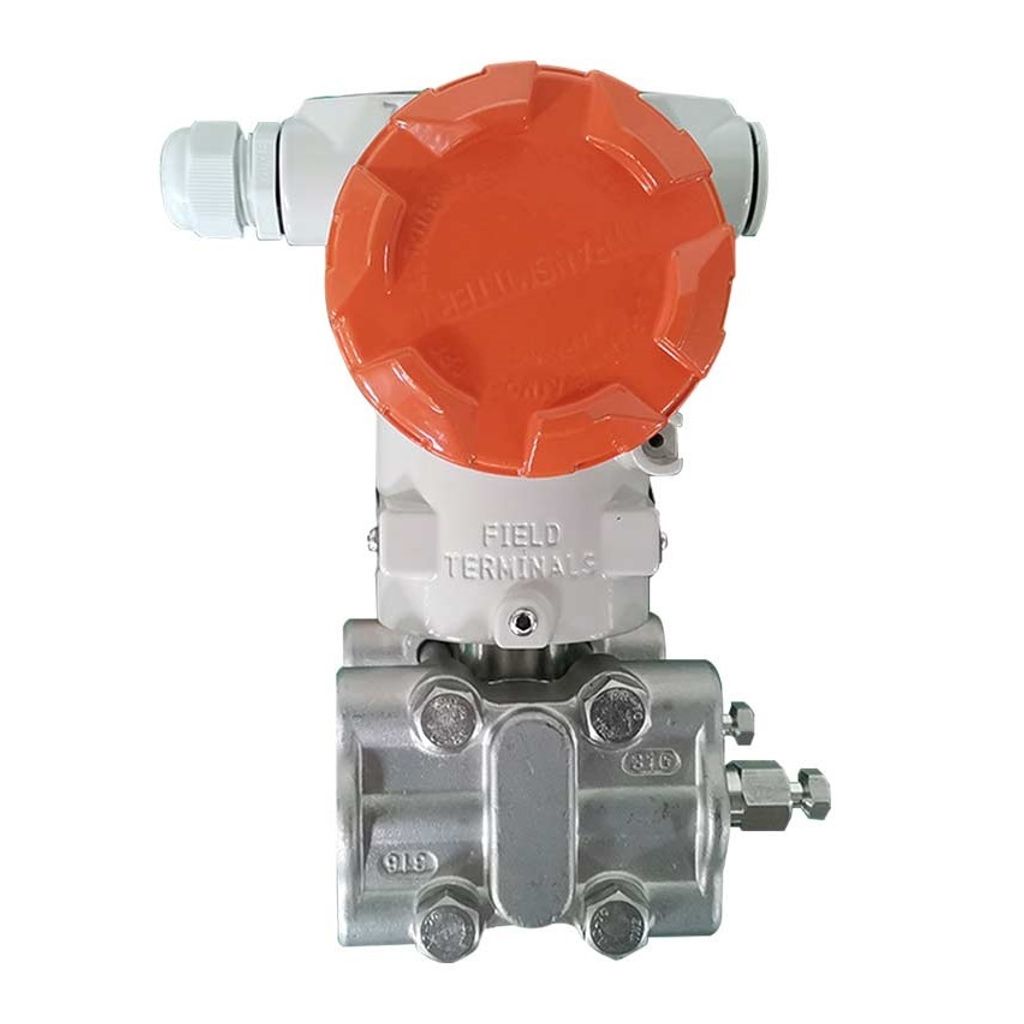

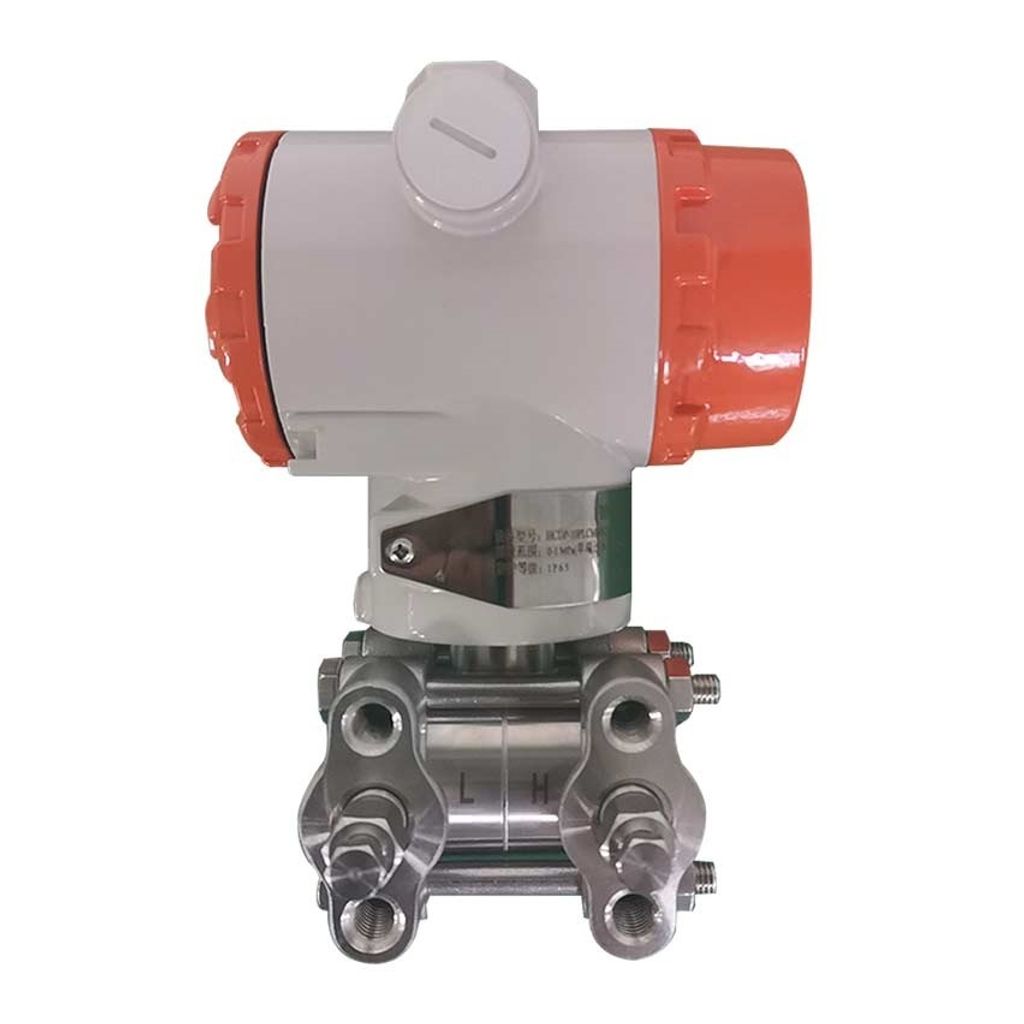

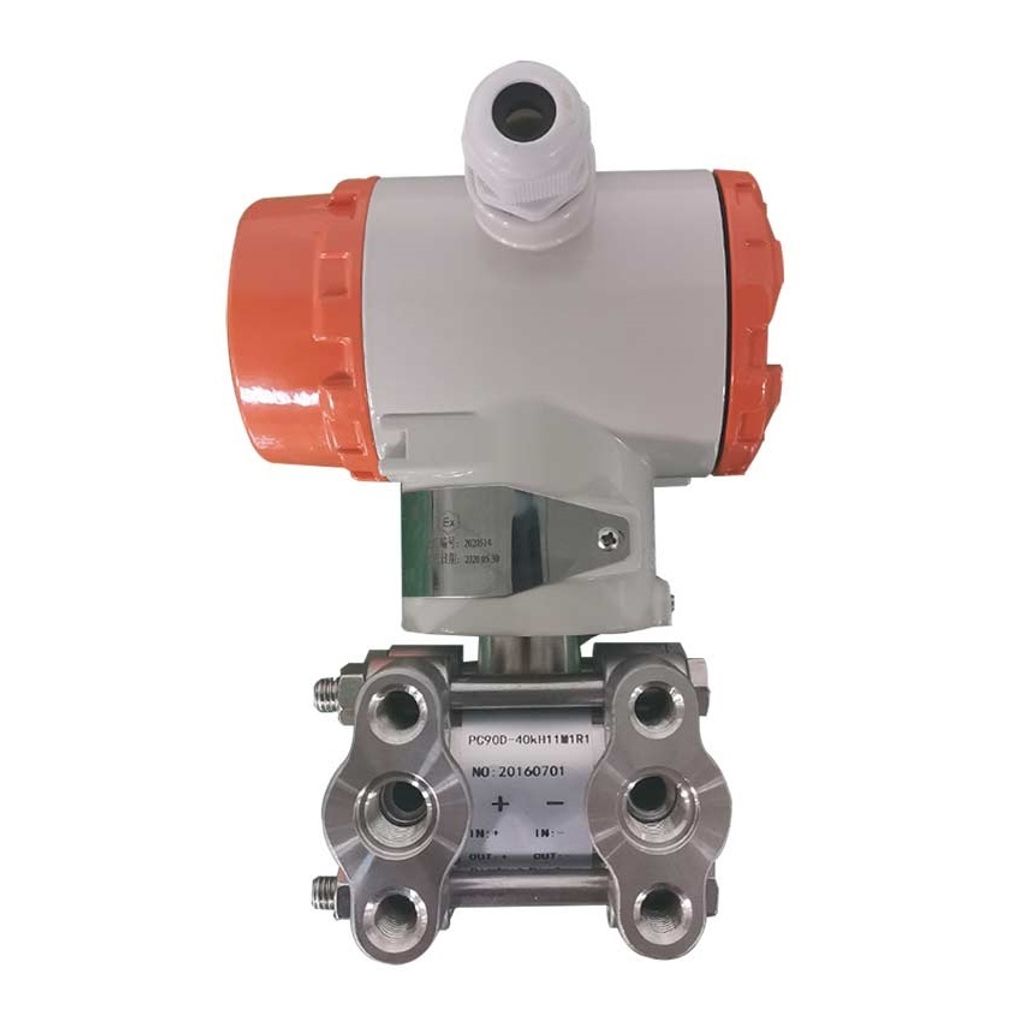

HCCK HCDP-30 Differential Pressure Transmitter for Liquid Level, Pressure, Flow, Density Measurement
*PRICE UPON REQUEST, PLEASE CONTACT US FOR PRICE OR QUOTATION THANK YOU*
Sensor Type：Single Crystal Silicon Differential Pressure Sensor
Measuring Range：Single End Overpressure ≤16MPa
Long-Term Stability：Better Than 0.2%FS Per Year
Signal Output：Two-Wire System (4-20) mA/HART Protocol
Display： Intelligent housing with LCD and backlight
Protection grade：Ex d [ia Ga] IIC T6 Gb
LCD 4-20ma output 0.1%，0.2% accuracy water oil differential pressure transmitter sensor
HDCP series Intelligent Differential Pressure Transmitter is a high performance pressure transmitter with the world-leading technology, developed with international advanced monocrystal silicon pressure sensor and patented packaging process. It adopts the patented double overload protection diaphragm design and internal circuit surge protection design, which could measure the gauge pressure, absolute pressure, flow rate, liquid level and density accurately. Designed by high level of integration and modularized circuit technology, achieves the functions of remote transmission, local zero, full range adjustment.
So it could be used in the process control fields of petroleum, chemical, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiment and aviation military industries.
HCDP-30 Intelligent differential pressure transmitter is mainly used in petrochemical, chemical, electric power, steel, cement, paper and other industries.Used with the device for gas, steam and liquid flow measurement; Measurement of liquid level, volume and density; Differential pressure measurement.
