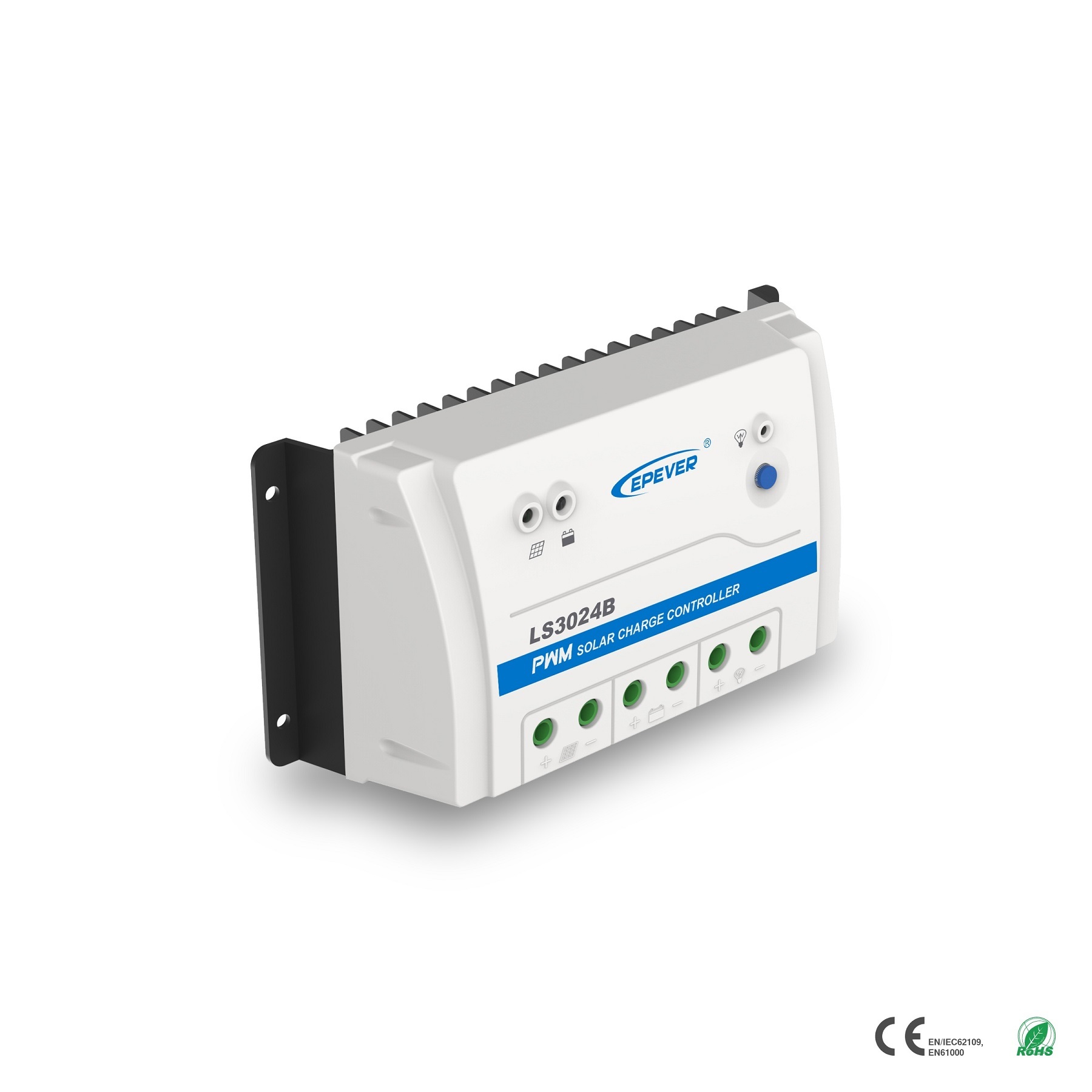

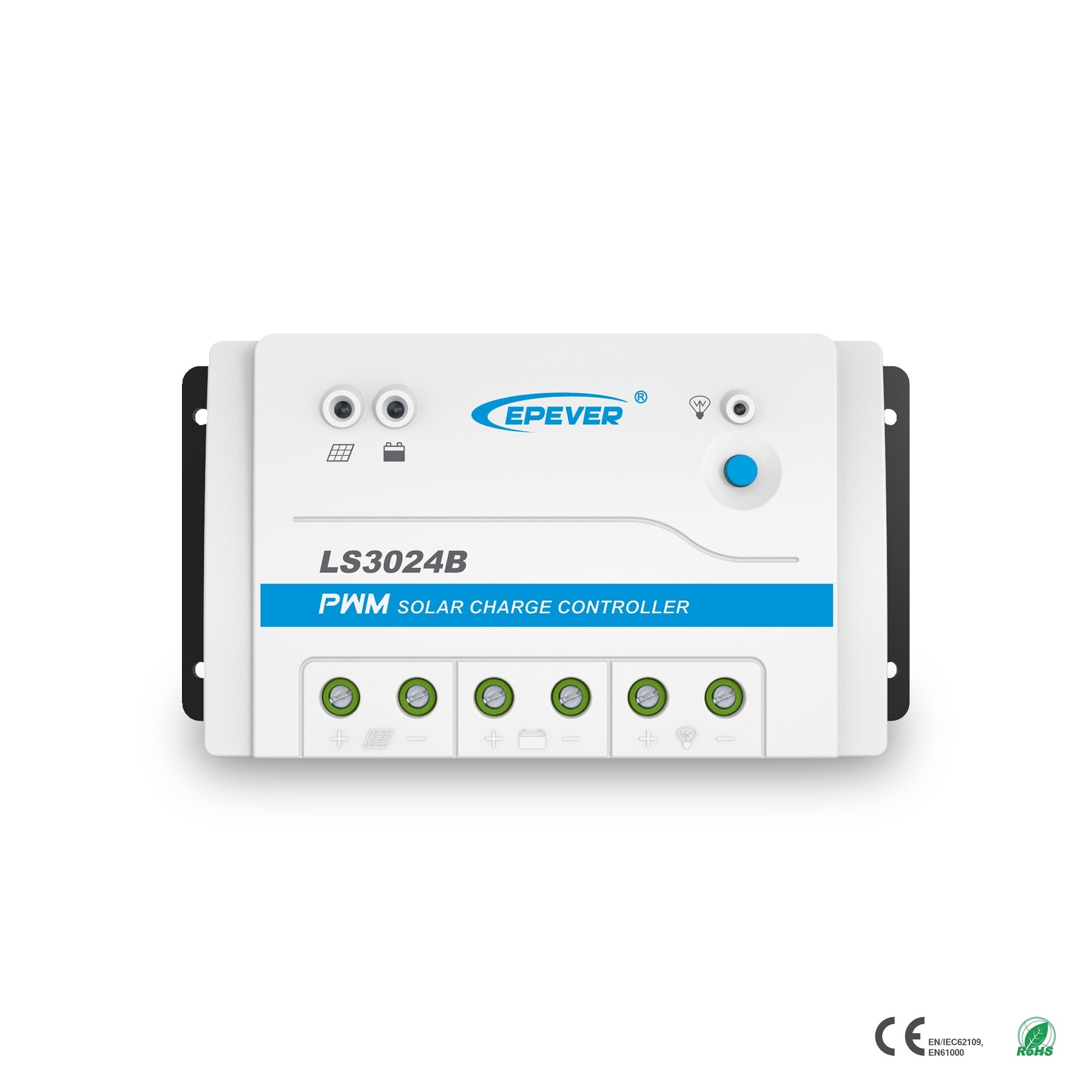

EPEVER 30A PWM Solar Charge Controller LS3024B 12V/24V Auto Work for Solar Lighting System Multiple Load Working Mode
- 30A 12/24V auto work, and three-level intelligent PWM charging: Equalize charging voltage, boost charging voltage and float charging voltage.
- Three LEDs shows PV charging, battery and load status. Optional RTS for accurate temperature compensation.
- RS485 port with industrial standard MODBUS open architecture, Real-time data monitoring and parameters setting with MT50, APP or PC software.
- More load working modes: manual control, light ON/OFF, light On+timer and time control.
- Use MOSFET as electronic switch, intelligent operation ,without any mechanical switch.
30A 12/24V auto work
External temperature sensor interface
RS-485 bus communication
three-level intelligent PWM charging: Equalize charging voltage, boost charging voltage and float charging voltage
Three LEDs shows PV charging, battery and load status. Optional RTS for accurate temperature compensation.
Software update function
Nominal system voltage: 12/24V auto work
Max. PV voltage of storage battery: 34V
Current of storage battery: 30A
Current of load:30A
Low voltage reconnect voltage: Sealed/Gel/Flooded:12.6V, User: 9～17V
Low voltage disconnect voltage: Sealed/G/Flooded:11.1V, User: 9～17V
Self-consumption: 8.4mA(12V); 7.8mA (24V)
Temperature compensation coefficient: -3mV/℃/2V(25℃)
Grounding: common positive
Working environment temperature: -35℃～ 55℃
Net weight: 0.5kg
