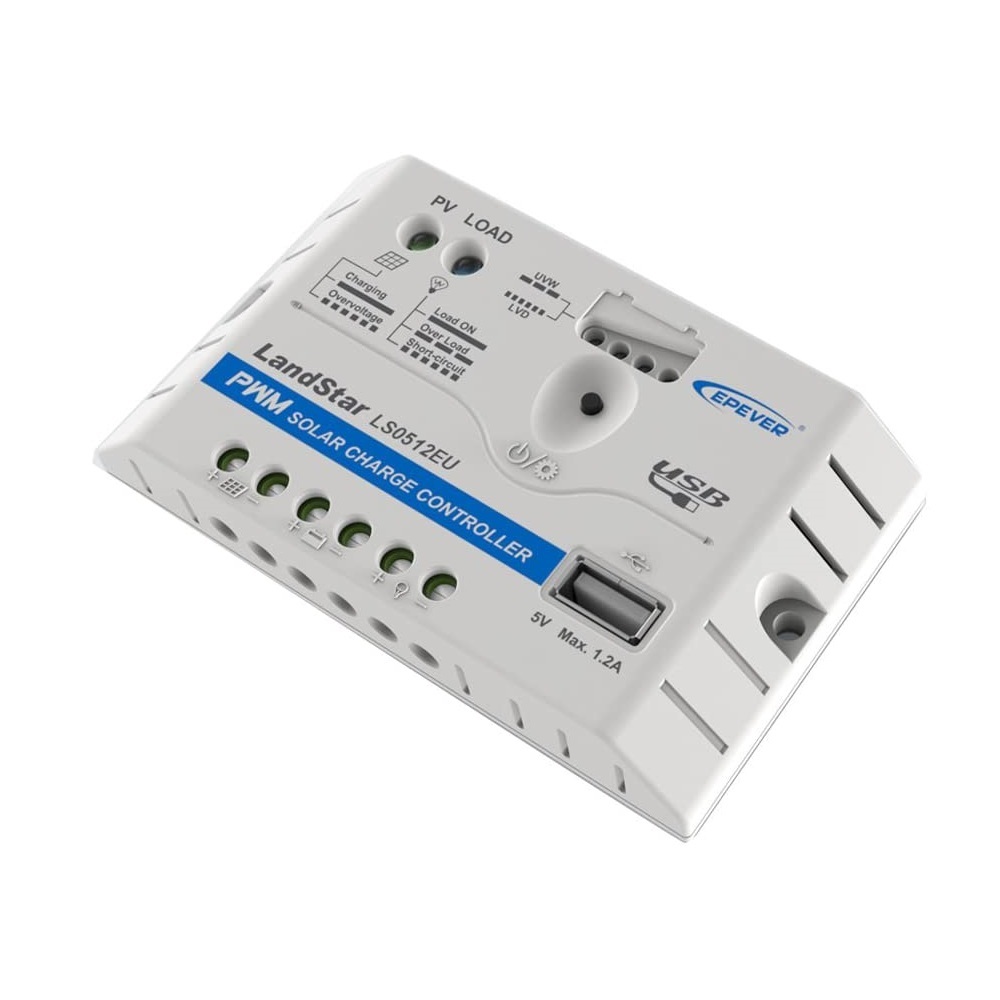

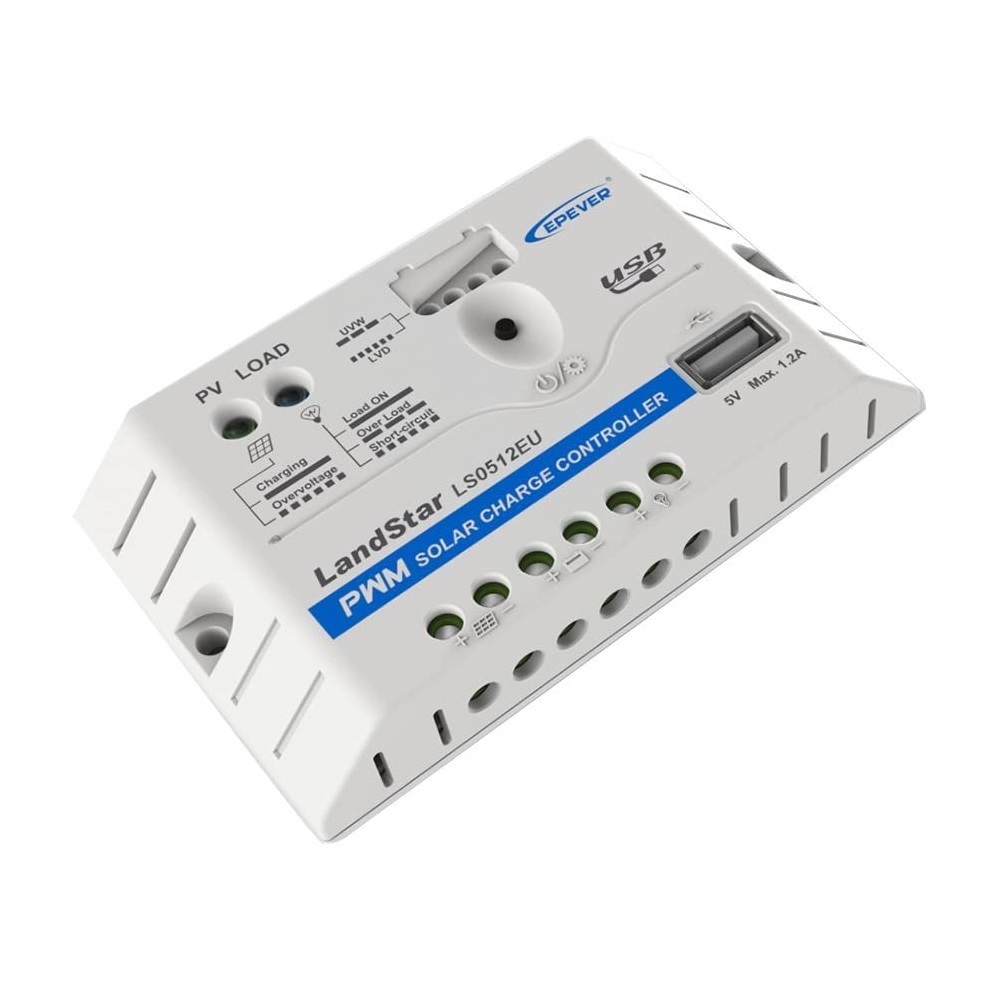

EPEVER Solar Charge Controller 5A 12V LS0512EU with USB Port 5VDC/1.2A Output PWM Regulator LED Indicator

RM 275.00

The LandStar EU series controller is a PWM charge controller with USB output that adopts the most advanced digital technique. It’s an easy operation and cost efficient controller featured as:
3-Stage intelligent PWM charging:Bulk, Boost/Equalize, Float
Support 3 charging options: Sealed, Gel, and Flooded
Battery status LED indicator can indicates battery situation
Battery temperature compensation function
With humanized settings, operation will be more comfortable and convenient
The USB will provide power supply that can charge for electronic equipment
Battery type and load output can be set via button
Extensive Electronic protection

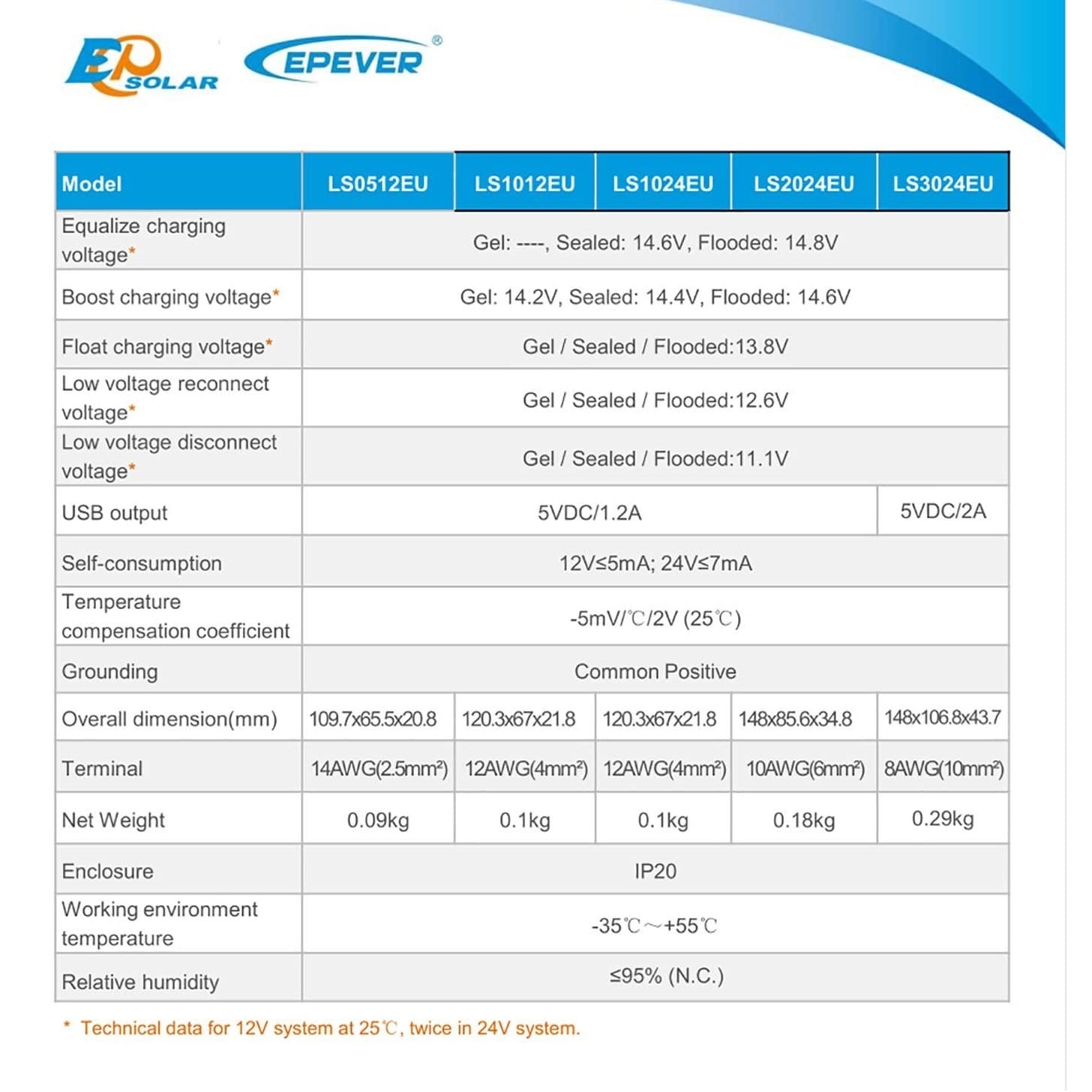

Technical Specifications:
Nominal system voltage:12VDC
Rated charge current :5A
Rated discharge current:5A
Battery input voltage range :8V~16V
Max. PV open circuit voltage:30V
Self-consumption:12V≤3mA
Charge Circuit Voltage Drop:≤0.12V
Discharge Circuit Voltage Drop:≤0.10V
Temperature compensation coefficient:-5mV/ ºC /2V
Working environment temperature:-35 ºC ~ +55 ºC
Humidity:≤95% N.C.
Enclosure:IP20
Grounding:Common Positive
Overall dimension:109.2*65.5*20.8mm
Mounting dimension :100.9mm
Mounting hole size:Φ4.5
Terminals :14AWG/2.5mm
Net weight :0.095kg

Package :
1 x LS0512EU solar charge controller
1 x Manual
