GSM 73602Type "Flash-Com"

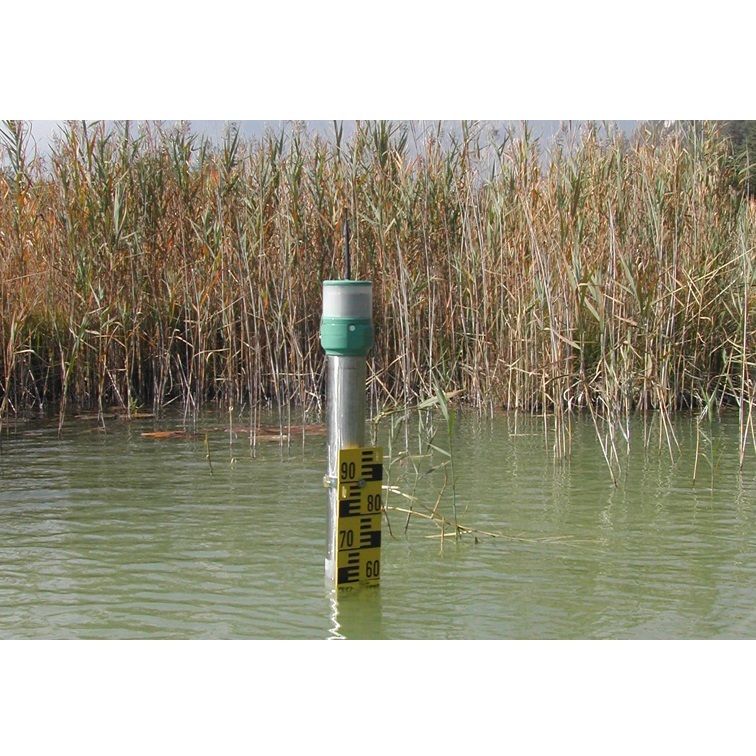

for the installation on 2" - 6" observation tubes
(standard: 4" thread)
complete watertightness and flood protection possible
power supply: solar cells with back-up battery

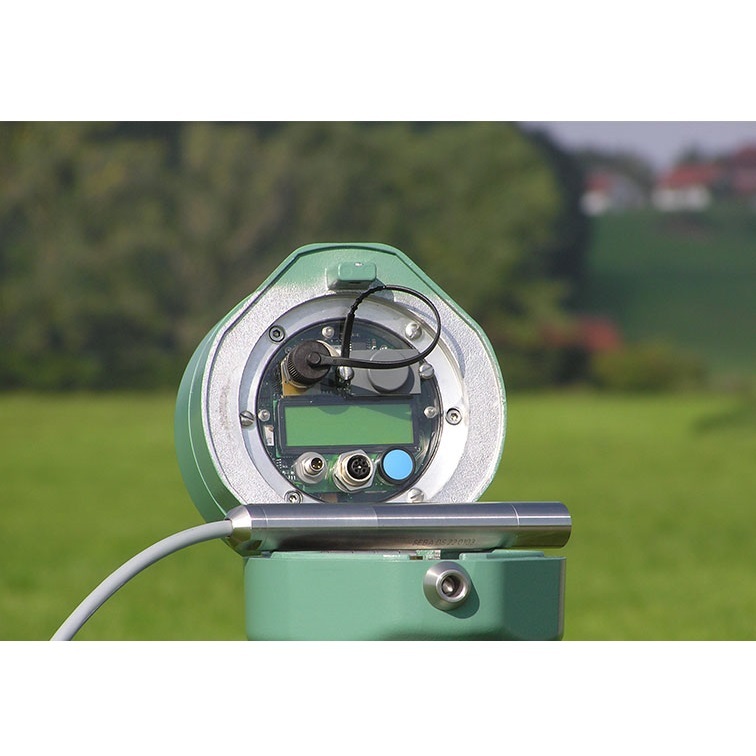

- Data Logger
capacity: 1 MB ( ≙ 480.000 measuring values)
memory: non-volatile ring memory,
back-up battery, selectable storage intervals
- GSM/GPRS-Modem
Data transmission via GSM/GPRS network
frequency: 850, 900, 1800, 1900 MHz (Quadband)
SIM-card: 3 V or 1,8 V
operating temperature: -30°C...85°C
- Alarm
an event-controlled alarm can be sent by
SMS or email
- Transmission Protocol
GSM 73602 MDS protocol

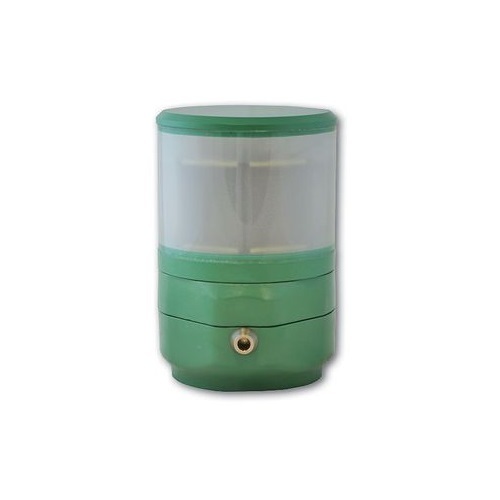

- 4" SEBA aluminium-cast top piece
with integrated antenna
- Solar Module
with internal buffer (15 Wh)
for autarkic measuring operation
FSE 57001Float sensor type Floatsens
with RS485 output to data logger, float 75 mm Ø,
counterweight and 15 m ball chain
m special cable with pressure compensation
plus
SWX 362WinOperate
read-out and operation Software
on CD for WINDOWS (98;NT;XP)
for operation, adjustment and
read-out of MDS-systems,
incl. ASCII-conversion of the measuring data
